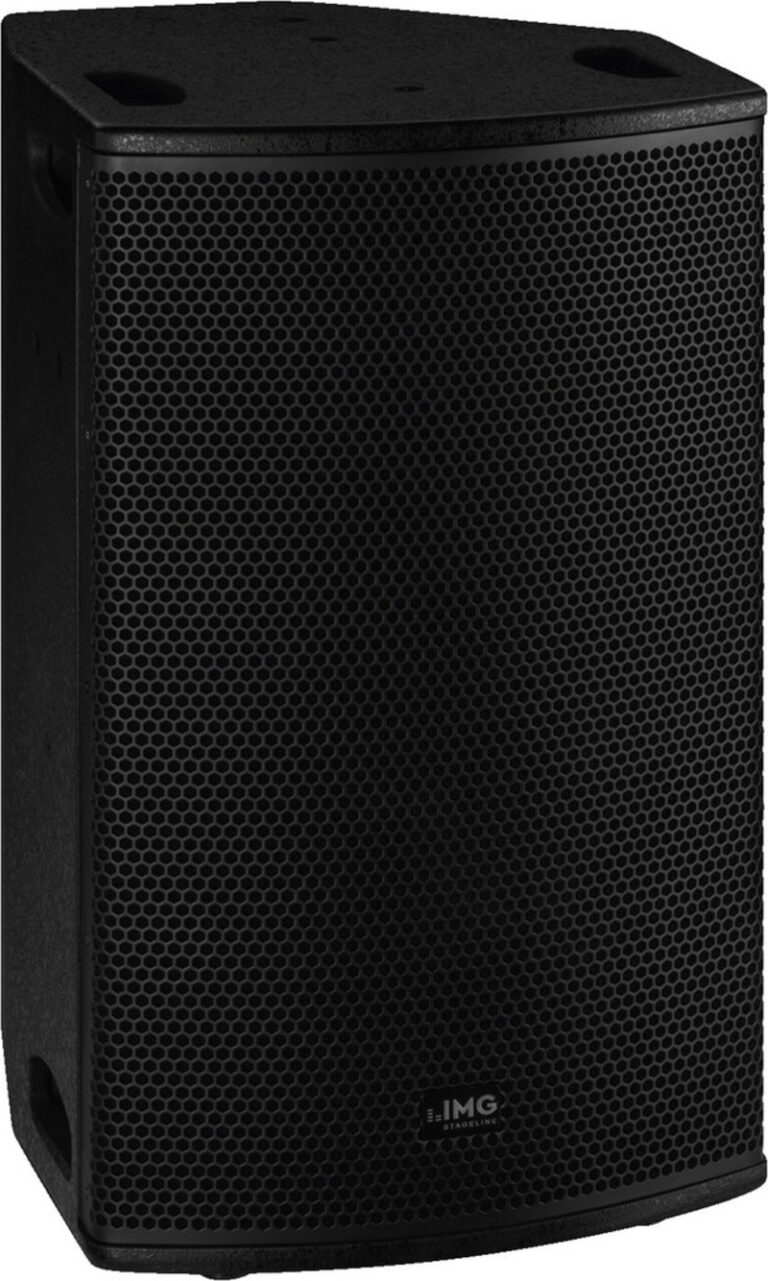

IMG Stage Line DRIVE-12A

Beschrijving

Features | 30 cm (12″) bass speaker and 25 mm (1″) horn tweeter, can be turned by 90° | Excellent sound characteristics | High-quality coating and neat workmanship | Multi-purpose positioning and installation options | Horn tweeter with consistent radiation pattern | M8 threaded inserts for suspended installation, stand sleeve | Volume control | 2 x balanced line in | 2 x parallel line out | 1 x balanced mix out | Power and clip indicator | Specifications | Active/passive: active | Transmission technology: cable | Total output power: 700 W | Power rating (RMS): | DSP-controlled 350 W (290 + 60) | bass: 290 W | treble: 60 W | Frequency range: 45-20,000 Hz | Input signal: 790 mV/40 kΩ (line, bal.) | System: 12/2 full range | Bass speaker: 30 cm (12″) bass speaker | Tweeter: 25 mm (1″) horn tweeter | Number of speakers: 2 | Speaker size: 30 cm (12″) | SPL: 98 dB/W/m | Max. rated SPL: 124 dB | Radiation angle/beam angle | H: 90°/V: 60°, horn can be turned | Radiation angle, horizontal    90° | Radiation angle, vertical    60° | Housing material: birch plywood | Colour: black | Mounting device: M8 threaded inserts, stand sleeve | Admiss. ambient temp.: 0-40 °C | Power supply: 230 V/50 Hz/510 VA | Dimensions: 360 x 620 x 380 mm | Weight: 17.04 kg | Inputs | 1 x comb. XLR/6.3 mm: line | 1 x XLR: line | Outputs | 2 x XLR par. out | 1 x XLR mix out | Other features: | DSP-controlled limiter | 3 selectable presets | Packing dimensions (W x H x L): 0.46 x 0.74 x 0.48 m | Gross weight: 21.66 kg | Net weight: 17.04 kg
