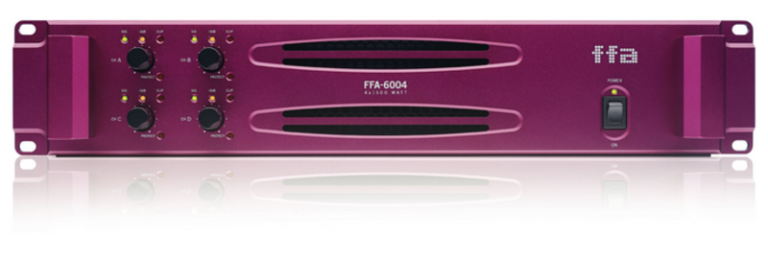

Full Fat Audio FFA-6004

Beschrijving

Features | 4 x 1500 Watts @ 4 Ohms | Power efficient and cool running | Rugged Tour class Aluminium construction | Light weight – 9 kg | FFA Class D technology | High current switch mode power supply | Side chain TCA clip limiter | Hand built and designed in England | Bi amp Neutrik® speakON outputs | Signal Link through | Neutrik® powerCON power input | PSU soft start | Specifications | Power Ratings: FFA – 6004 – 4 x 800W 8 Ohm, 4 x 1500W 4 Ohm | Gain: 32 dB | THD: Typical 0.05 4 Ohm 1kHz THD+N | Frequency Response: 20Hz – 20kHz +- 0.5dB | Controls: 40 Point Potentiometer per channel, power on switch | Indicators: signal green = -20dB, signal yellow = -3dB, red signal = clip, signal red protect = over current, low AC mains or 3 sec. mute on power up | Load Protection: DC on output, side chain TCA clip limiter circuit | Amplifier Protection: Short circuit, current overload, thermal shutdown, high frequency stability circuit | Audio Signal Inputs: Balanced Neutrik® Female XLR input connected Pin 1 – GND, Pin 2 – Hot +, Pin 3 – Cold – . XLR Male signal throughput each channel | Audio Signal Outputs: Neutrik® speakON each channel. Channels 1 and 3 output speakON utilises 2+ and 2- connection to allow use of 4 core loudspeaker cable for bi amp loudspeaker system for example stage monitor system | Power Requirement: 1 x Neutrik® 20A powerCON connector 1 x 16A 230 VAC Circuit. Power range 185V-230VAC 120V (configured at factory) | System Cooling: High CFM 80mm fan with proportional signal speed control. Rear to front airflow | Dimensions: 88mm Height x 483mm Width x 510mm Depth. Includes rear rack support. 19″ rack mount enclosure | Weight: 9 kg
