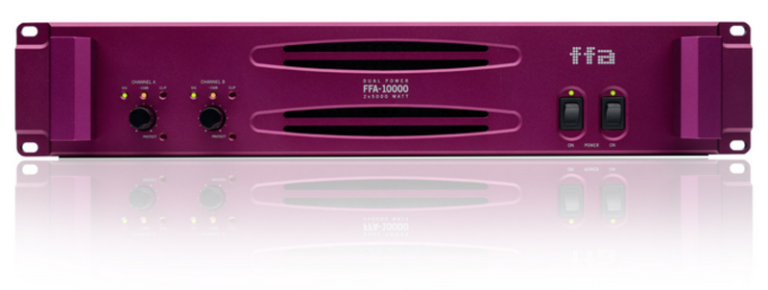

Full Fat Audio FFA-10000

Beschrijving

Features | 2 x 5000 Watts at 2 Ohms | FFA Class D PWM amplifiers | Power supply soft start | High thermal headroom | Weight – 12kg | Dual mono power amplifiers | Clip limiter | 5 year factory warranty | Hand constructed and designed in England | Switch mode power supply | Power efficient | 2 Ohm drive | All aluminium construction | Dual power supply | Specifications | Power Ratings: FFA – 10000  –  8 Ohms 1500W, 4 Ohms 3000W, 2 Ohms 5000W | Gain 32 dB | THD Typical 0.05 4 Ohm 1kHz THD+N | Frequency Response: 20Hz – 20kHz | Controls: Power on rocker switch each channel. 40 point Potentiometer each channel | Indicators: Power ‘on’ green LED each channel, Signal present green LED, -3dB drive yellow LED, amplifier clip – red signal LED,  amplifier protect due to over temp/clip limiter activated and 3 second mute at power up = red LED | Cooling: Rear to front airflow, high CFM fan | Load Protection: DC on output, side chain TCA clip limiter circuit | Amplifier Protection: Short circuit, current overload, thermal, reactive load stability | Audio Inputs: Neutrik® female XLR with male XLR signal link through per channel | Audio Outputs: Pair of Neutrik® NL4MP-UC speakON® connectors per channel. Each connector has all output poles live 1+, 1-, 2+, 2-. This allows the use of 4 core loudspeaker cable to minimise conductor losses between amplifier and loudspeaker | Power Supply: 2 x 20A Neutrik® powerCON® required – one each channel | Power Requirement: | 185-230 VAC 50-60Hz, 2x16A max per amplifier | 120V (configured at factory) | Power Operational Range:  +-10% | Dimensions: 2RU 19” rack mount enclosure, H88mm x W483mm x D510mm. Depth includes integral rear rack support ears | Weight 12 kg
