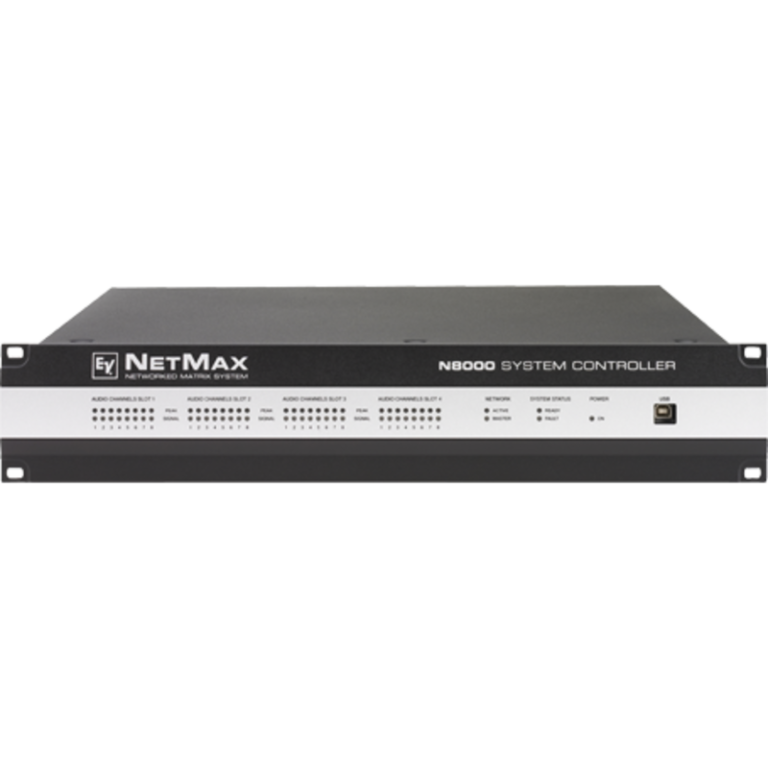

Electro Voice Netmax N8000-1500

Beschrijving

General Description and features: | N8000-1500 Systems Controller: Modular NetMaxTM system manager including signal processing, routing, system control and supervision | Audio: 32 Audio Channels. 4 Audio Slots, modular. 8-Channel Input and Output cards, analog or digital. | Networking: Module Slot for optional CobraNetTM Interface. 32 I/O Audio and Control. | Safety / Redundancy: Internal Supervision, System Monitoring, Watchdog, Fault Output, Redundant Audio Network possible | PC Configuration and Control Software: Intelligent Remote & Integrated Supervision Integration of N8000-1500, Remote Amplifiers, peripheral control Configuration, Control and Supervision for complete Audio System Freely programmable User Control Panels and Access Levels | Audio Specifications: | Audio Inputs: 8 analog audio inputs per module, line level, electronically symmetric 8 x Input Connectors: 3-pole Euro block connectors | Input Level (nominal): +6 dBu / 1.55 V | Input Level (max before clip): +21 dBu / 8.7 V | Input impedance: 20 kΩ | Common Mode rejection: > 70 dB | A/D Conversion: 24 Bit, Sigma-Delta, 128 times over sampling | Audio inputs: 8 analog audio outputs per module, line level, electronically symmetric | Connectors: 8 x 3-pole Euro block connectors | Output Level (nominal): +6 dBu / 1.55 V | Output level (max before clip): +21 dBu / 8.7 V | Output Impedance: 100 Ω | Min. Load impedance: 600 Ω | D/A Conversion: 24 Bit, Sigma-Delta, 128 times over sampling | Frequency Response: 20 Hz…20 kHz (-0.5 dB) | Signal tot Noise Ratio (A-wWeighted): AI-1: 117 dB typical, AO-1: 118 dB typical, N8000 THD+N: analog In to analog Out: 114 dB typical < 0.005 % | Crosstalk: < -110 dB @ 1 kHz | Signal processing: | Sample Rate: 48 kHz internal, 32 kHz - 192 kHz external | Data format: 24 Bit linear A/D and D/A conversion, 48 Bit processing | 5 DSPs Standard (1500 MIPS), 1 DSP per Audio Module (100 MIPS) | Interfaces | Ethernet: 10 / 100 MBit/s, RJ-45 (PC Control) | CAN: 10 ... 500 kbaud, 2 x RJ-45 (Remote Amp Control) | RS-232: 2 Ports, 9 pin DSUB male (Remote Control) | USB: USB Type B on Front Panel (PC Control) | GPIO Control Port: 2 x 6-pole Euro block, 4 Control Inputs (analog 0 -10V / logic control), 3 Control Outputs (Relay contact to ground), 1 Fault Output (NC Relay contact), 3 Reference Outputs (+5 V, +10 V / GND) | N8000-1500 General Specifications | Power Supply: 100 - 240 V AC, 50/60 Hz | Power Consumption: 90 W max. (incl. 2 x AI-1, 2 x AO-1, 1 x CM-1 modules) Left-to-right, | Cooling: 3-stage fan | Operating temperature Range: 32°F – 104°F (0 °C – 40 °C) | Dimensions: 19“ x 3.5” x 15” (483 x 88.1 x 381 mm) 2 RU | Modules / Options | AI-1 Analog Input Module: 8 analog line level audio inputs, electronically balanced | AO-1 Analog Output Module: 8 analog line level audio outputs, electronically balanced | CM-1 CobraNet Module: 32 digital audio inputs and outputs, 2 CobraNetTM ports (Primary/Secondary) for network redundancy | D0-1 Digital output Moldule: 8 AES/EBU outputs, Euroblock connectors, 48 kHz | MI-1 Microphone Input Module: 8 mic/line level inputs, programmable Gain and Phantom Power, pad for line level switching, electronically balanced | DI1 Digital Input Module: 8 AES/EBU or S/PDIF inputs, Euroblock or optical connector, 32-192 kHz SRC per input
