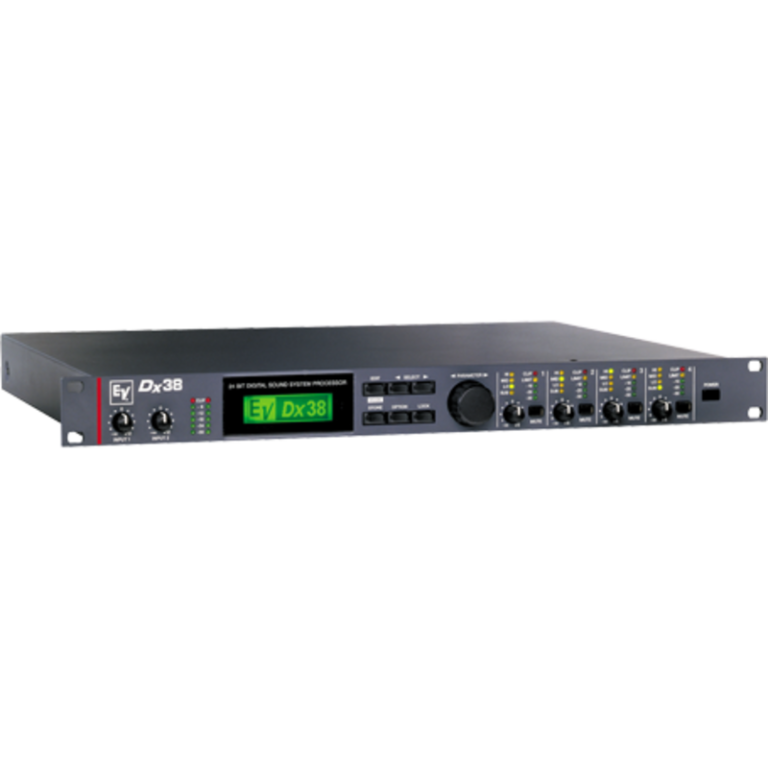

Electro Voice DX38

Beschrijving

AC Voltage: 90-250 V AC (50-60 Hz) | Power Consumption: 30 W maximum | Safety Class: VDE/IEC Class I | Inputs: 2 x XLR in, electronically balanced, transformers optional 2 x XLR OUT (Direct Out) | Nominal input voltage: 1.55 V (+6 dBu) | Maximmum input Voltage: 24.5 V (+30 dBu) | Input Impedance: 20 kΩ | Common-mode rejection: >40 dB (1 kHz) | A/D Conversion: 24-bit; 128x oversampled; linear phase | Outputs: 4 x XLR out; electronically balanced | Nominal Output voltage: 1.55 V (+6 dBu) | Maximum output voltage: 8.7 V (+21 dBu) | Output impedance: <100 Ω | Minimum load impedance: 600 Ω | D/A Conversion: 24-bit; 128x oversampled; linear phase | Frequency Response: 20 Hz–20 kHz (-0.5 dB) | S/N Ratio: >115 dB (typical) | THD without transformer: <0.01% (1 kHz) | THD with transformer: <0.05% (1 kHz) | Crossover: - Independently adjustable high- and low-pass filters with Butterworth and Linkwitz-Riley 12- and 24-dB/octave slopes and Bessel 6-, 12-, 18- and 24-dB/octave slopes | EG Filters: Five filters per input; four filters per output: | – Parametric EQ (20 Hz–20 kHz; Q 0.4–20.0; +/-12 dB) | – Low shelf (20 Hz - 20 kHz; 6/12-dB slope; +/-12 dB); Hi shelf (6-dB slope; +/-12 dB) | –  High- and low-pass (6/12-dB slope; Q 0.4–2.0) | – All pass (outputs only) | Compressors: One per output, with adjustable threshold, compression ratio, and attack/release times | Limiters: One per output, with adjustable threshold and release time | Midi in/out/thru: Data dump/master-slave operation/remote control | Delay: | - 3 master delays (2–900 ms) | - 4 channel delays (0–900 ms) | - Delay increment: 21 μsec | Data format: 24-bit linear AD/DA conversion; 48-bit processing | Sample Rate: 48 kHz | Display: 122 x 32 dots, graphic LCD display with LED backlight | Dimensions: 1.72" (43.6 mm) x 19.0" (483 mm) x 14.8" (375 mm) hwd | Weight: 11 lbs (5 kg)
