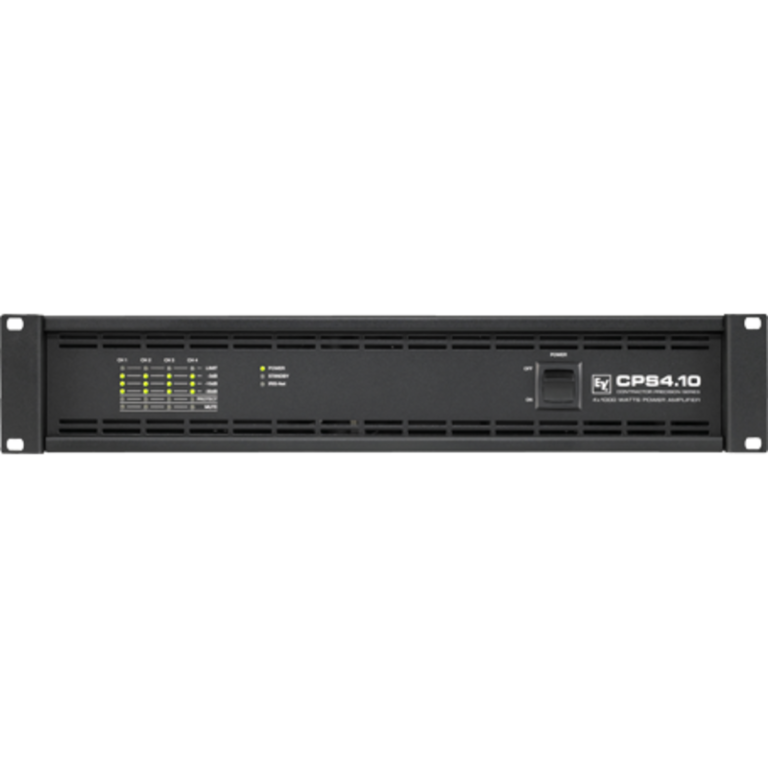

Electro Voice CPS 4.10

Beschrijving

Amplifier Gain 32 dB (Lo-Z), 33 dB (70V), 36 dB (100V) | Analog Inputs 4, electronically balanced, Phoenix-type | Audio Network No | CAN Bus Interface Optional (RCM-810 card) | Continuous Rated Power (1 kHz, THD 1%) | 100V 1000 Watts | 2Ω 1000 Watts | 4Ω 1000 Watts | 70v 1000 Watts | 8Ω 500 Watts | Continuous Rated Power (20-20 kHz, THD<0,2%) | 100v 900 Watts | 4Ω 900 Watts | 70v 900 Watts | 8Ω 450 Watts | Cooling Front-to-Rear, continuously variable fans | DIM 30: 0.02 % | Frequency Response: 15 Hz-30 kHz | Impedance: 2/4/8/8 VLD/70 V/100V Ω | Input Impedance (Balanced): 20 kΩ | Input Sensitivity: | 0 dBu (.775V)-2 Ω, | +3 dBu (1.1V)-4/8 Ω, | +6 dBu (1.55) 70V/100V | Intermodulation Distortion (SMPTE) 0.05 % | Mains Voltage | 220 - 240 V, 50 - 60 Hz | 120 V, 50 - 60 Hz, 50 - 60 Hz | Maximum Bridged Output | 4Ω 2000 Watts | 8Ω 2000 Watts | Maximum Input Voltage 22 9.76 Vrms | Network Control (IRIS-Net) Optional (RCM-810 card) | Signal-to-Noise Ratio (A-weighted) 103 dB | Slew Rate 28 V/µs | Topology Class-D | Total Harmonic Distortion 0.05 % | Variable Load Drive (VLD) Yes | Dimensions | Height 2RU 88.1 mm (3.47") | Width 482.6 mm (19") | Depth 421.5 mm (16.59") | Weight Net 11.1 kg
