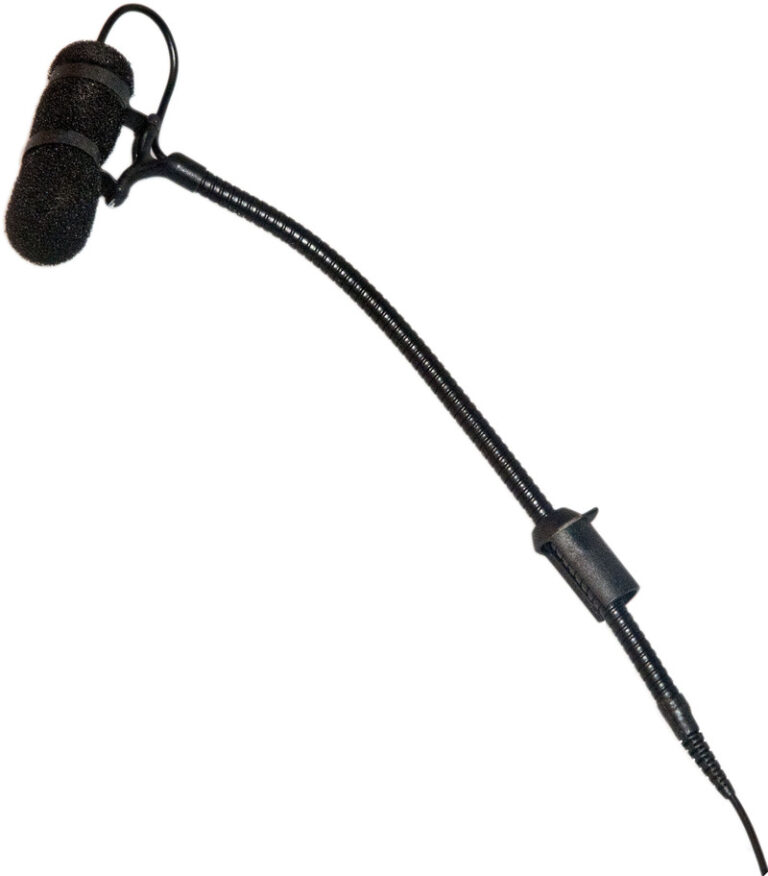

DPA 4099C

Beschrijving

Natural sound and high isolation | Superior gain-before-feedback | Flexible and easy mounting | Mount has no impact on acoustic sound | Detachable cable and versatile gooseneck extender | Sensitivity : -44.50 dB | Maximum SPL (Sound Pressure Level) : 142 dB | Operating Temperature (Maximum) : 45 C | Signal to Noise Ratio : 71 dB | Color : Black | Product Weight : 0.03 kg | Cable Length : 180 cm | Connector : MicroDot | Operating Temperature (Minimum) : -40 C | Dynamic Range : 100 dB | Power Supply : Min. 5 V to max. 50 V through DPA adapter for wireless systems; 48 V phantom power ±4 V with DAD6001 XLR adapter | Equivalent noise level A-weighted : Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A)) | Common Mode Rejection Ratio (CMRR) : >60 dB at 50 Hz to 15 kHz with DAD6001 XLR adapter | Frequency Range : 20Hz to 20 kHz | Frequency range ± 2 dB 20 cm distance : 80 Hz to 15 kHz with 2 dB soft boost at 10 to 12 kHz | Principle of operation : Pressure gradient | Microphone Length : 45 mm | Relative Humidity : Up to 90 % | Output Impedance : From MicroDot: 30 to 40 ohm from DAD6001: 100 ohm | Output balance principle : Signal balanced with DAD6001 XLR adapter | Gooseneck length : 140 mm | Current Consumption : 1.5 mA; 3.5 mA with DAD6001 XLR adapter | Total Harmonic Distortion (THD) : <1 % up to 123 dB SPL peak; <1 % up to 120 dB SPL RMS sine | Cable drive capability : 300 m with DAD6001 | Polarity : Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
