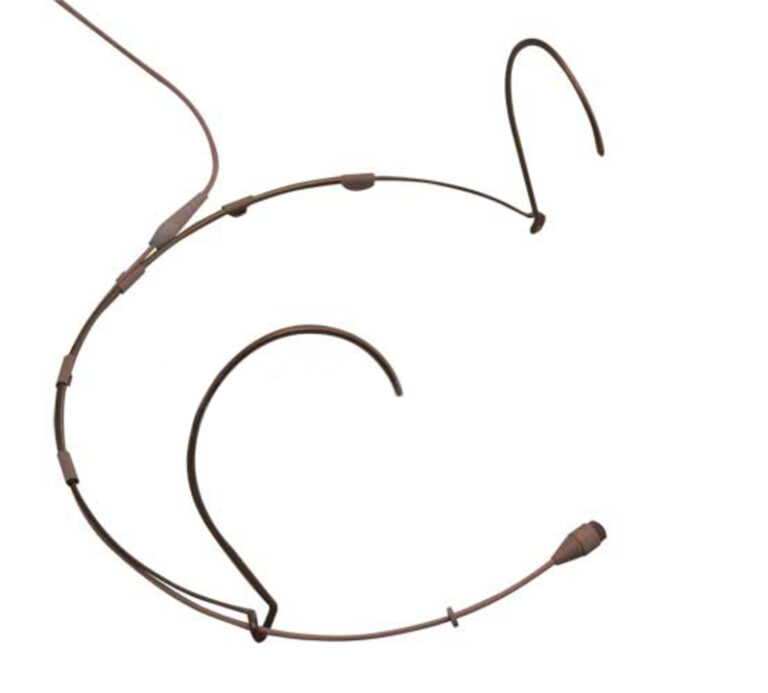

DPA 4088 bruin

Beschrijving

Directional characteristics:    Cardioid | Principle of operation:    Pressure gradient | Cartridge type:    Pre-polarized condenser element with vertical diaphragm | Frequency range, ± 2 dB:    100 Hz – 20 kHz (4 – 6 dB soft boost at 15 kHz) | Sensitivity, nominal, ±3 dB at 1 kHz:    6 mV/Pa; 44 dB re. 1 V/Pa | Equivalent noise level, A-weighted:    Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A)) | Equivalent noise level ITU-R BS.468-4:    Typ. 38 dB (max. 40 dB) | S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL):    68 dB (A) | Total harmonic distortion (THD):    < 1 % up to 123 dB SPL peak; < 1 % up to 120 dB SPL RMS sine | Dynamic range:    Typ. 97 dB | Max. SPL, peak before clipping:    144 dB | Output impedance:    30 – 40 ohm | Cable drive capability:    Up to 300 m | Power supply:    For wireless systems: Min. 5 V – max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance. | Connector:    MicroDot | Color:    Black, brown or beige | Microphone weight: 14 g  incl. cable and MicroDot connector | Microphone diameter: 5.5 mm | Microphone length: 11 mm | Cable length: 1.2 m | Cable diameter: 1.6 mm | Polarity:    Positively increasing sound pressure produces positive going voltage on MicroDot pin | Operating temperature range: -10 to 45 °C
