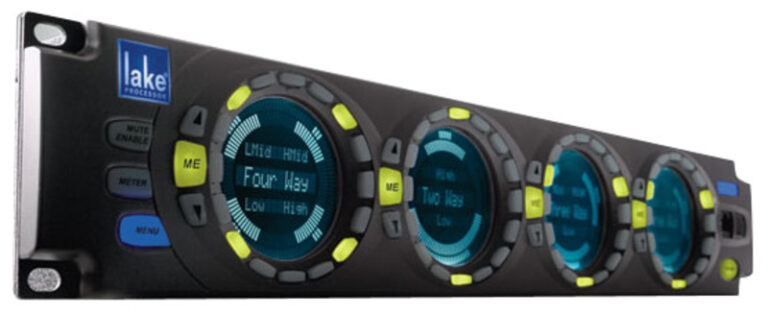

Dolby Lake

Beschrijving

Audio Performance | Conversion Resolution | 24-bit | Internal Sample Rate | 96 kHz | Internal Data Path | 32-bit floating point | System Propagation Delay | <2 ms from any input to any output (analog or digital) | Maximum Available Delay | 2 s from any input to any output | Sample-Rate Converters | Operating Sample Rates | 44.1, 48, 88.1, 96 kHz | Resolution | 24-bit | THD + Noise | 0.00003% typical, 20 Hz to 20 kHz, unweighted | Dynamic Range | 140 dB typical, 20 Hz to 20 kHz, unweighted | Back-Panel Interface | Analog I/O Connectors | XLR | AES/EBU I/O Connectors | 25-pin D-connector, with selectable termination on pairs 1 and 2 | S/PDIF I/O Connectors | ToslinkTM optical | Word Clock Input | BNC with selectable termination | Ethernet | Auto 10/100, Auto Uplink: (2) RJ-45, (1) EtherCon | ® | Power | 3-pin IEC, 2 fuses T 1.5A L, 5 × 20 mm | Digital-to-Analog Outputs | Frequency Response | +0/–0.1 dB, 3 Hz to 20 kHz | THD + Noise | 0.0004% typical at 1 kHz | 0.00056% typical, 20 Hz to 20 kHz, unweighted | Dynamic Range | 113 dB typical, 20 Hz to 20 kHz, unweighted | Output Impedance | 50 | Ω | Maximum Output Level | +21 dBu | Crosstalk | –100 dB, 2 Hz to 40 kHz | Analog | ? | to | ? | Digital Inputs | Frequency Response | +0/–0.2 dB, 2 Hz to 20 kHz | THD + Noise | 0.00022% typical at 1 kHz, 0.00033% typical, 20 Hz to 20 kHz, unweighted at +21 dBu headroom setting | Dynamic Range | 116 dB typical, 20 Hz to 20 kHz, unweighted at +21 dBu headroom setting | Input Impedance | 20 k | Ω | balanced, 10 k | Ω | unbalanced | Maximum Input Level | +26 dBu | Input Sensitivity Settings for Digital Full-Scale | +10, +16, +21, +26 dBu | Common Mode Rejection | 65 dB, 20 Hz to 20 kHz, 75 dB typical at 1 kHz, 70 dB typical at 20 kHz | Crosstalk | –100 dB, 2 Hz to 40 kHz | Combined A/D and D/A | THD + Noise | 0.0005% typical at 1 kHz, 0.00063% typical, 20 Hz to 20 kHz, unweighted | Dynamic Range | 113 dB typical, 20 Hz to 20 kHz, unweighted | AES/EBU I/O and S/PDIF I/O | Supported Resolutions | Up to 24 bits | Supported Sample Rates | 44.1, 48, 88.1, 96 kHz | Dante | Supported Resolution | 24 bits | Supported Sample Rate | 96 kHz | Number of I/O channels | 8 input and 16 output channels | Power Requirements | 100–240 VAC ±10%, 120 W maximum | Dimensions and Weight | 2-RU rackmount: 8.74 × 48.26 × 35 cm (3.44 × 19 × 13.78 inches); net: 9 kg (20 lb)
