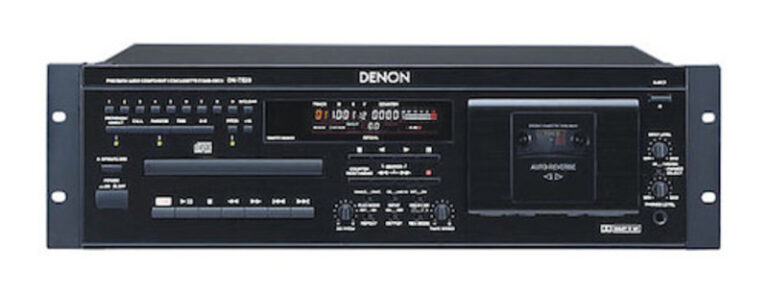

Denon DN-T620

Beschrijving

CD Section | Type: Single-mechanism Compact Disc Player | Audio Channels: 2 channel (Stereo) | Discs: Standard Compact Disc (12 cm, 8 cm) | Quantization Bits: 16-bit Linear | Sampling Frequency: 44.1 kHz | Frequency Response: 20 Hz-20 kHz | Signal-to-Noise Ratio: 94 dB or better | Total Harmonic Distortion: 0.009% or less | Channel Separation: 70 dB or better | Oversampling 16-bit: 8-times | Line Output | – Balanced (active): XLR connector | – Unbalanced: RCA connector | Output Level | – Balanced: +18 dBm, 600 ohms | – Unbalanced: 20 Vrms, 10 kohms | Load Impedance: 10 kohms or more | Frame Search Accuracy: 1/75 second | Speed Adjustment: ±12% with center click | Cassette Deck Section | Type: 4-track, 2-channel stereo cassette deck | Tape Selector: Auto (I-Normal, II-CrO2, IV-Metal) | Heads | – Record: & Playback Hard Permalloy x 1 | – Erase: Double-gap ferrite x 1 | Motors: DC servo motor x 1 | Wow & Flutter: 0.08% Wrms | Fast Forward Time: Approx. 110 sec. (C60) | Speed Adjustment: ±12% or better with center click | Signal-to-Noise Ratio: 60 dB (Dolby B on, 3% THD by CCIR/ARM) | Line Input: 80 mV (–20 dBm), 50 kohms, unbalanced | Line Output: 775 mV (0 dBm), 47 kohms, unbalanced | Headphone Output: 20 mW (30 to 40 ohm) | Power Supply: AC120 V (108-132 V)/230 V (207-255 V), 50/60 Hz | Power Consumption: 24 W | Dimensions: 483 (W) x 132 (H) x 252 (D) mm | Weight: 6.0 kg
