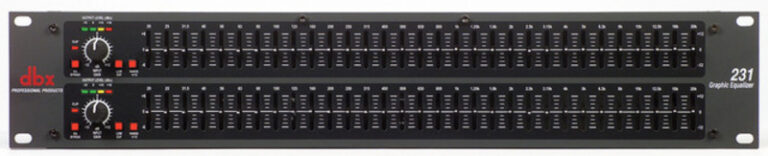

DBX 231

Beschrijving

Input Connectors | 1/4″ TRS, female XLR (pin 2 hot) | Input Type | Electronically balanced/unbalanced, RF filtered | Input Impedance | Balanced 40k ohm, unbalanced 20k ohm | Max Input | >+21dBu balanced or unbalanced | CMRR | >40dB, typically >55dB at 1kHz | Output Connectors | 1/4″ TRS, male XLR (pin 2 hot) | Output Type | Impedance-balanced/unbalanced, RF filtered | Output Impedance | Balanced 100 ohm, unbalanced 50 ohm | Max Output | >+21dBu balanced/unbalanced into 2k ohm or greater; >+18dBm balanced/unbalanced (into 600 ohm) | Bandwidth | 20Hz to 20kHz, +0.5/-1dB | Frequency Response | <10Hz to >50kHz, +0.5/-3dB | Dynamic Range | 108dB | Signal to Noise Ratio | 90dB | THD+Noise | <0.004% | Interchannel Crosstalk | <-80dB, 20Hz to 20kHz | Bypass Switch | Bypasses the graphic equalizer section in the signal path | Low cut Switch | Activates the 50Hz 12dB/octave high-pass filter | Range Switch | Selects either +/- 6dB or +/-12dB slider boost/cut range | Operating Voltage | 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz | Power Consumption | 15W | Power Connector | IEC receptacle
