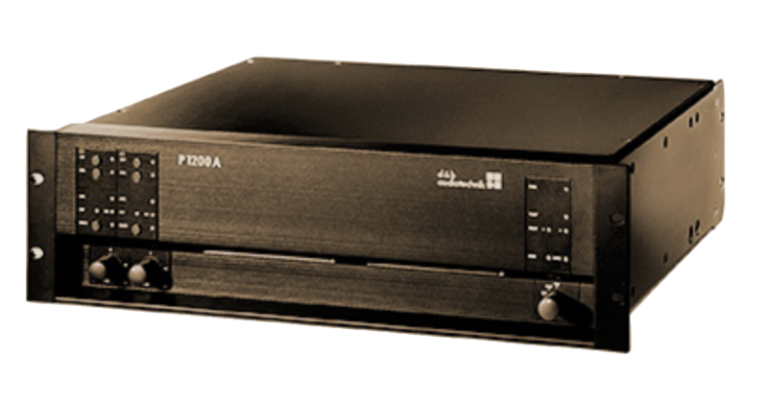

D&B P1200A + C7 Card

Beschrijving

System Specifications | Nominal output power: | 2 x 400 watts – 8 ohms (THD+N < 0.1%, both channels driven) | 2 x 600 watts - 4 ohms | Frequency response (–1 dB): 10 Hz ... 40 kHz measured at rated output power, both channels driven | Distortion (THD+N): < 0.06 % from 0.1 W to rated output power, 20 Hz ... 20 kHz | Intermodulation distortion (SMPTE): < 0.03 % from 0.1 W to rated output power | Residual noise: > 110 dB below rated output power, 22 Hz … 22 kHz, unweighted, RMS | Damping factor at loudspeaker output: > 50 20 Hz – 20 kHz, 4 ohms load | Crosstalk: < –55 dBr | Protection circuits | Mains inrush current limiter: 5 A | Switch-on delay < 2 s | Overvoltage, DC output, overtemperature and short circuits | Connections | Input: XLR 3-pin female | Pin assignments: 1 = GND, 2 = pos. signal input, 3 = neg. signal input | Input impedance 44 kohms electronically balanced (transformer balanced optional) | INPUT LINK: XLR 3-pin male parallel to input | MONO OUT: | XLR 3-inl. male | balanced, minimum output load impedance: 600 ohms | OUT CHANNEL A/B: Speakon-NL4 (EP-5 optional) | Pin assignments for full range speakers and passive subs: 1+ / 1– (EP-5: 1/2) | Pin assignments for active subwoofers: 2+ / 2– (EP-5: 3/4) | REMOTE CONTROL: DIN 3-pin, 1 = –/ 2 = n.c. / 3 = + | General | Height x width x depth:  3 rack unit x 483 mm (19") x 353 mm (13.9") | Weight with 2 modules fitted: 22 kg (48.5 lbs)
