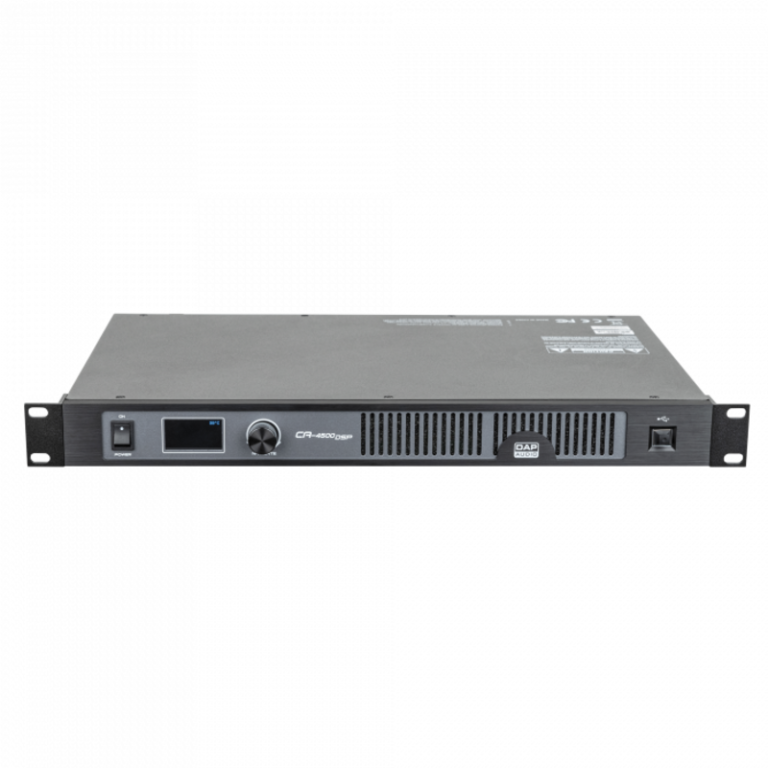

DAP CA-4500 DSP

Beschrijving

​Specifications | Outputs | 2 ohms Stable: No | Output per Channel into 8 ohms at 1 kHz: 250 W | Output per Channel into 4 ohms at 1 kHz: 500 W | Bridge Output into 8 ohms at 1 kHz: 1000 W | Output per Channel into 8 ohms from 20 Hz – 20 kHz: 250 W | Output per Channel into 4 ohms from 20 Hz – 20 kHz: 500 W | Bridge Output 8 ohms from 20 Hz – 20 kHz: 1000 W | Bridge Output 100 V: 1000 W | Output Channels: 4 | Output Gain: 34 dB | Output Mode: 4-channel, Bridge, Mono, Stereo | Output Connector: Speaker Connector 4 pole | Inputs | Mono Inputs: 4 | Mono Input Connector: 3-pin XLR | Mono Input Impedance: 20000 Ω | Unbalanced Mono Input Sensitivity: 1 dBv | Audio Specifications | THD Level: < 0.15 % | Signal-to-noise Ratio: > 96 dB | AD/DA Convertor Sample Rate: 96 kHz | Audio Latency: 1.5 ms | Slew Rate: 25 V/μs | Amp Technology: Class D | Damping Factor: 180 :1 | Crosstalk: 60 dBu | Frequency Response Minimum: 20 Hz | Frequency Response Maximum: 20000 Hz | Software Specifications | Supported Operating Systems: Windows | Sound Editing | Parametric Input Equalizer: 8 Bands | Parametric Output Equalizer: 8 Bands | Input Equalizer Types: Bell, High Shelf, Low Shelf, Notch | Output Equalizer Types: High Shelf 6, High Shelf 12, Low Shelf 6, Low Shelf 12 | Crossover Filter Types: Bessel, Butterworth, Linkwitz Riley | Crossover Slopes: 6, 12, 18, 24, 30, 36, 42, 48 dB | Dynamics Processing: Compressor, Gate, Limiter | Phase Reverse: Yes | ​ | Internal Storage | User Presets: Yes | Control and Programming | Control Mode: Manual, PC Software | Display: OLED | Electrical Specifications and Connections | Power Supply: 220-240 V AC 50 Hz | SMPS: Yes | Power Consumption: 1741 W | Fuse: 10 A | Power Connector In: IEC | Data Connector In: USB | ​ | Mechanical Specifications | Amplifier Airflow: Front to back | Amplifier Cooling: Radial Fan | Height (mm): 44 mm | Width (mm): 483 mm | Length (mm): 285 mm | Installation Depth (Excl. Connector): 285 mm | Flightcase Size: 19″ | Rack Units: 1 U | Housing: Metal | Colour: Black | Finish: Powder Coating | Weight: 5.9 kg | IP Rating: IP20 (indoor use only) | Product Properties | Handles: No | Electronic Protection: Clip limiter (fixed), DC voltage, Overheat, Overload, Short circuit, Softstart, Thermal
