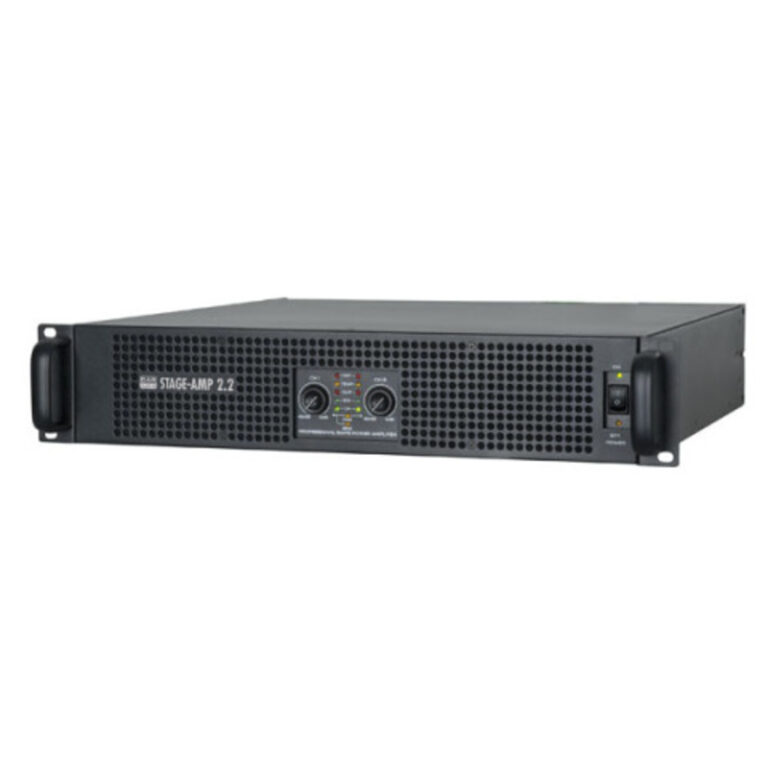

DAP Audio Stage-Amp 2.2

Beschrijving

Features | Rugged but lightweight steel housing (15Kg) | Tour proof amplification quality | 2 Ohm Stable | Tight and high bass pressure | Very reliable due to overdimensioned switching power supply | Specifications | Output Power (EIA Standard / 1kHz, 1x THD, 40mSec) | Stereo output power 8 Ohm: 650W / | Stereo output power 4 Ohm: 1100W / | Stereo output power 2 Ohm: / 1500W | Bridge output power 8 Ohm: 2200W / | Bridge output power 4 Ohm: / 3100W | Frequency response (8 Ohm): 20 Hz- 20 kHz, +/- 0,5 dB | S/N Ratio: >90 dB | Input sensitivity: 0,775V/1,0V/1,4V | THD+N (8 Ohm, 1 kHz) | ¼ Output power: <0,07% | Damp. Fact. (8 Ohm, 1 kHz): >200 | Amplifier: 3 steps Class H | Slewrate: 13V/uSec | Protection circuit: DC/Short circuit/VHF/Temp | Cooling: Internal heatsink with front to rear airflow | Signal input connectors: XLR 3 pin, male/female | Speaker output connectors: Binding post, 4 pole speakon | Dimensions (LxWxH): 483 x 500 x 89 mm | Weight: 15,0 kg
