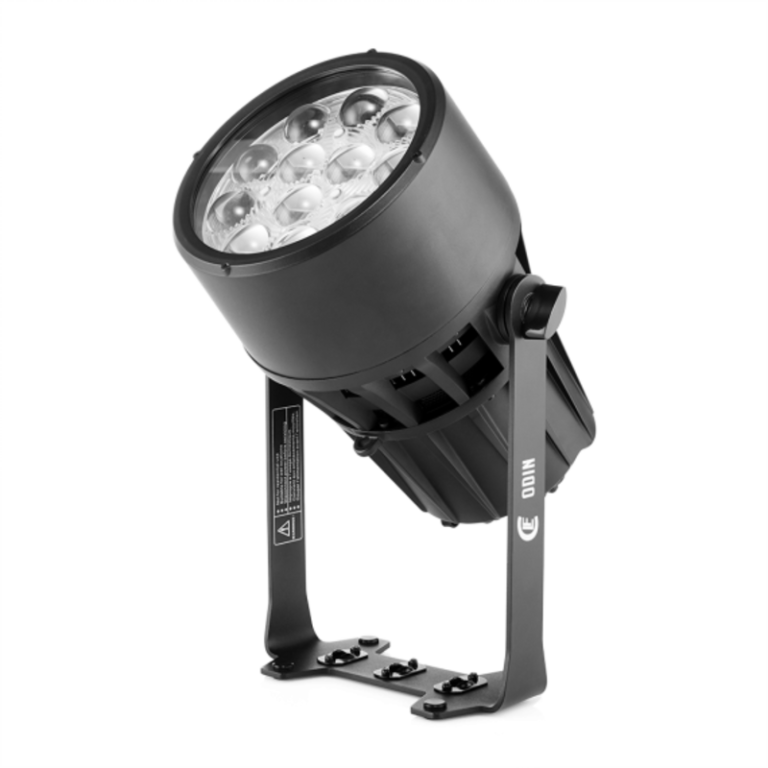

CLF Odin

Beschrijving

Features | SMOOTH RGB+LIME COLOR MIXING | IP65 RATING | 11-50° ZOOM RANGE | HIGH CRI & R9 VALUES | SILENT OPERATION | CONFIGURABLE USER MODES | Specifications | Power | Input voltage & rate: 100-240 VAC, 50/60Hz | Standby power: 10W | Nominal total power consumption  (at nominal voltage 230V): 262W | Typical current (at nominal voltage 230V): 1.2A | Cos φ: 0,994 | Power plug type: PowerCON TRUE 1 | Configuration | LED color: RGBL | LED color temperature: 2500K-10000K | LED CRI level: <90 | Quantity of LED: 12 | Dimming frequency: 600-10000Hz | Dimmer resolution: 16 bit | Optical | Beam angle: 11° – 50° | Heat management | Cooling type: Intelligent fan | MAX ambient temp (Ta max): 40°C | MIN ambient temp  (Ta min): -20°C | MAX housing temp. (ta=25°C): 45°C | MAX housing temp. (ta=40°C): 56°C | Menu | Auto program: Yes | Static color: Yes | Manual calibration: Yes | Factory calibration: Yes | Strobe speed: 0-25Hz | Random strobe: Yes | Control | DMX channel range: 6/8/9/13 ch | RDM: Yes | RDM Compliance: ANSI/ESTA E.120 | W-DMX: Optional | sACN: No | DMX input connection: DMX 5 pin in & out (3 pin optional) | Data input connection: No | Hardware | Interface: LCD display | Software upload method: XLR (via special box) | Safety attachment point: 2 | Installation | Location: Indoor/outdoor | IP rating: IP65 | Orientation: Any | Physical | Net product weight: 6 KG | Machine dimensions – length: 314mm | Machine dimensions – depth: 253mm | Machine dimensions – height: 363mm
