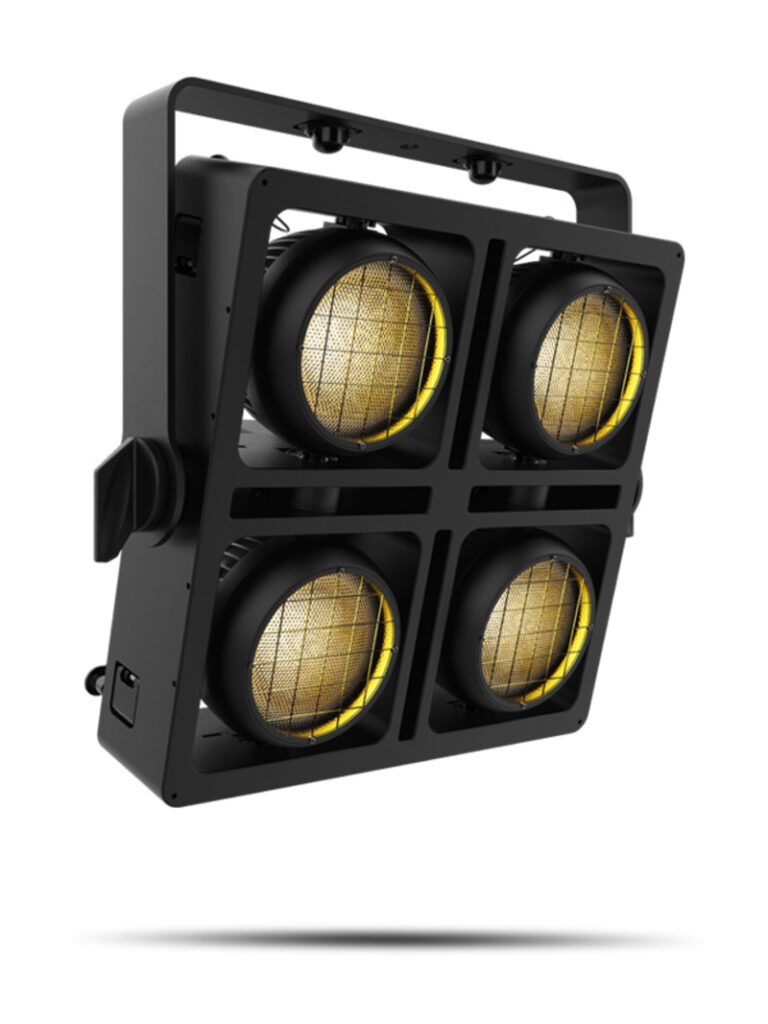

Chauvet Strike Array 4

Beschrijving

OPTICAL | Light Source: 192 LED (WW) 1.33 W, (2.2 A), 2700 K, 50,000 hours life expectancy | Light Source: 20 LED (Amber) 2.63 W, (.758 A), 50,000 hours life expectancy | Color Temperature (at full): 2770 K | CRI: 93.2 | TLCI: 91 | Beam Angle: 61.5° | Field Angle: 100.5° | Illuminance (total): 684 lux @ 5 m | Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz | DYNAMIC EFFECTS | Dimmer: Electronic | Strobe Rate: 0 to 25 Hz | Dim Modes: 4 | Built-in Automated Programs: Yes | CONSTRUCTION / PHYSICAL | Dimensions: 18.5 x 16.7 x 6.3 in (470 x 424.5 x 161 mm) | Dimensions (shipping size): 20.7 x 8.5 x 19.3 in (525 x 215 x 490 mm) | Weight: 28.7 lb (13 kg) | Weight (shipping weight): 33.1 lb (15 kg) | Exterior Color: Black | Housing Material: Aluminum die-cast | CONNECTIONS | Power Connection: Edison (Local) plug to Seetronic Powerkon IP65 | Power Input: Seetronic Powerkon IP65 | Power Output: Seetronic Powerkon IP65 | Data Connectors: 5-pin IP65 XLR | Cable Length (power): 5 ft (1.5 m) | CONTROL | Control Protocol: DMX, RDM | DMX Channels: 1, 3, 4, 5, 6, or 10 | ELECTRICAL | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) | Power Linking: 5 units @ 100 V; 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V; 12 units @ 240 VPower and Current: 243 W, 2.44 A @ 100 V, 60 Hz [9.0 A inrush] | Power and Current: 241 W, 2.01 A @ 120 V, 60 Hz [10.8 A inrush] | Power and Current: 244 W, 1.18 A @ 208 V, 60 Hz [14.2 A inrush] | Power and Current: 245 W, 1.07 A @ 230 V, 50 Hz [12.8 A inrush] | Power and Current: 247 W, 1.03 A @ 240 V, 50 Hz [12.8 A inrush] | Power and Current (resting): 8 W, .087 A @ 100 V, 60 Hz | Power and Current (resting): 9 W, .083 A @ 120 V, 60 Hz | Power and Current (resting): 17 W, .083 A @ 208 V, 60 Hz | Power and Current (resting): 18 W, .082 A @ 230 V, 50 Hz | Power and Current (resting): 21 W, .084 A @ 240 V, 50 Hz
