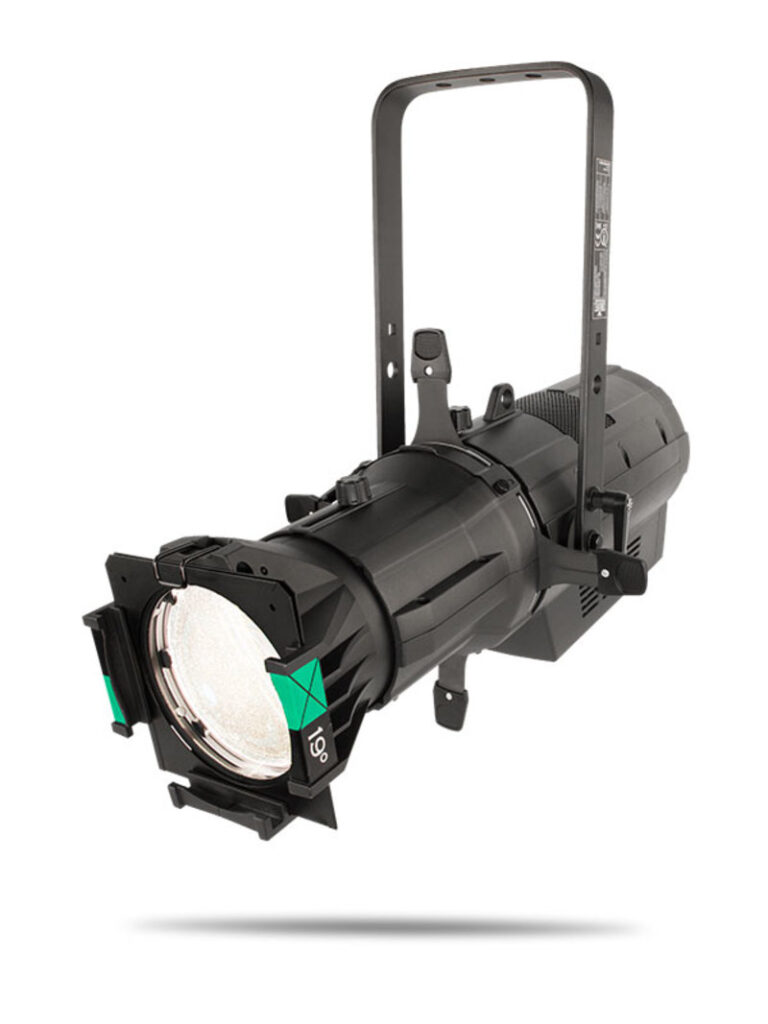

Chauvet Ovation E-260WW 25-50˚ Lens

Beschrijving

Optical | Light Source: 1 LED (WW) 230 W, (3.6 A), 3149 K, 50,000 hours life expectancy; (CW) 198 W, (3.5 A), 5452 K, 50,000 hours life expectancy | Color Temperature (at full): (WW) 3149 K; (CW) 5452 KCRI: (WW) 96; (CW) 96 | Beam Angle | (w/14° lens): 11° | (w/19° lens): 13° | (w/26° lens): 16° | (w/36° lens): 20° | (w/50° lens): 28° | (w/15°–30° lens)(Narrow): 12° | (w/15°–30° lens)(Wide): 14° | (w/25°–50° lens)(Narrow): 21° | (w/25°–50° lens)(Wide): 22° | Field Angle | (w/14° lens): 14° | (w/19° lens): 18° | (w/26° lens): 25° | (w/36° lens): 34° | (w/50° lens): 50° | (w/15°–30° lens)(Narrow): 15° | (w/15°–30° lens)(Wide): 29° | (w/25°–50° lens)(Narrow): 26° | (w/25°–50° lens)(Wide): 46° | Dimming Modes: 4 | Lumens | (w/19° lens): (WW) 7,587; (CW) 9,530 | (w/26° lens): (WW) 10,284; (CW) 13,368 | (w/36° lens): (WW) 10,121; (CW) 13,184 | (w/50° lens): (WW) 9,655; (CW) 12,672 | Illuminance | (w/14° lens): (WW) 13,439 lux @ 5 m; (CW) 16,787 lux @ 5 | (w/19° lens): (WW) 9,256 lux @ 5 m; (CW) 10,674 lux @ 5m | (w/26° lens): (WW) 6,910 lux @ 5 m; (CW) 8652 lux @ 5m | (w/36° lens): (WW)4,053 lux @ 5 m; (CW) 5185 lux @ 5m | (w/50° lens): (WW)1,703 lux @ 5 m; (CW) 2181 lux @ 5m | (w/15°–30° lens)(Narrow): (WW) 16,827 lux @ 5 m ; (CW) 19,900 lux @ 5m | (w/15°–30° lens)(Wide): (WW) 10,626 lux @ 5 m; (CW) 10,159 lux @ 5m | (w/25°–50° lens)(Narrow): (WW) 7,210 lux @ 5 m; (CW) 9,219 lux @ 5m | (w/25°–50° lens)(Wide): (WW) 3,295 lux @ 5 m; (CW) 3,468 lux @ 5m | Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz | Dynamic Effects | Dimmer: Electronic | Shutter/Strobe: Electronic | Zoom: Manual | Strobe Rate: (WW) 0 to 27 Hz; (CW) 0 to 30 Hz | Dim Modes: 4 | Built-in Automated Programs: Yes | Color Temperature Presets: (CW) No | Construction / Physical | Dimensions | (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm) | (w/14° lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm) | (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm) | (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm) | (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm) | Weight | (fixture only): 15.4 lb (7 kg) | (w/14° lens): 20.8 lb (9.43 kg) | (w/26° lens): 19.4 lb (8.80 kg) | (w/15°–30° lens): 29.4 lb (13.34 kg) | (w/25°–50° lens): 27 lb (12.25 kg) | Exterior Color: Black | Gobo Size (Optional) | “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness) | “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness) | Accessory Holder/Gel Frame Size | (14° lens): 7.5 in (191 mm) | (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm) | (15°–30° lens): 7.5 in (191 mm) | (25°–50° lens): 7.5 in (191 mm) | Connections | Power Connection: Edison (Local) plug to Neutrik powerCON | Power Input: Neutrik powerCON | Power Output: Neutrik powerCON | Data Connectors: 3- and 5-pin XLR | Cable Length (power): 5 ft (1.5 m) | Control | Control Protocol: (WW) DMX; (CW) DMX, RDM | DMX Channels: 1, 2, 3 or 6 | Modes/Personalities: 4 personalities (1, 2, 3, 6) | Electrical | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) | Power Linking: (WW) 8 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V; (CW) 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V | Power and Current | (WW) 209 W, 1.7 A @ 120 V, 60 Hz; (CW) 225 W, 1.86 A @ 120 V, 60 Hz | (WW) 206 W, 1.0 A @ 208 V, 60 Hz; (CW) 234 W, 1.12 A @ 208 V, 60 Hz | (WW) 204 W, 1.0 A @ 230 V, 50 Hz; (CW) 233 W, 1.02 A @ 230 V, 50 Hz | Certifications / Qualifications | CE, MET, FCCIP Rating: IP20, dry location
