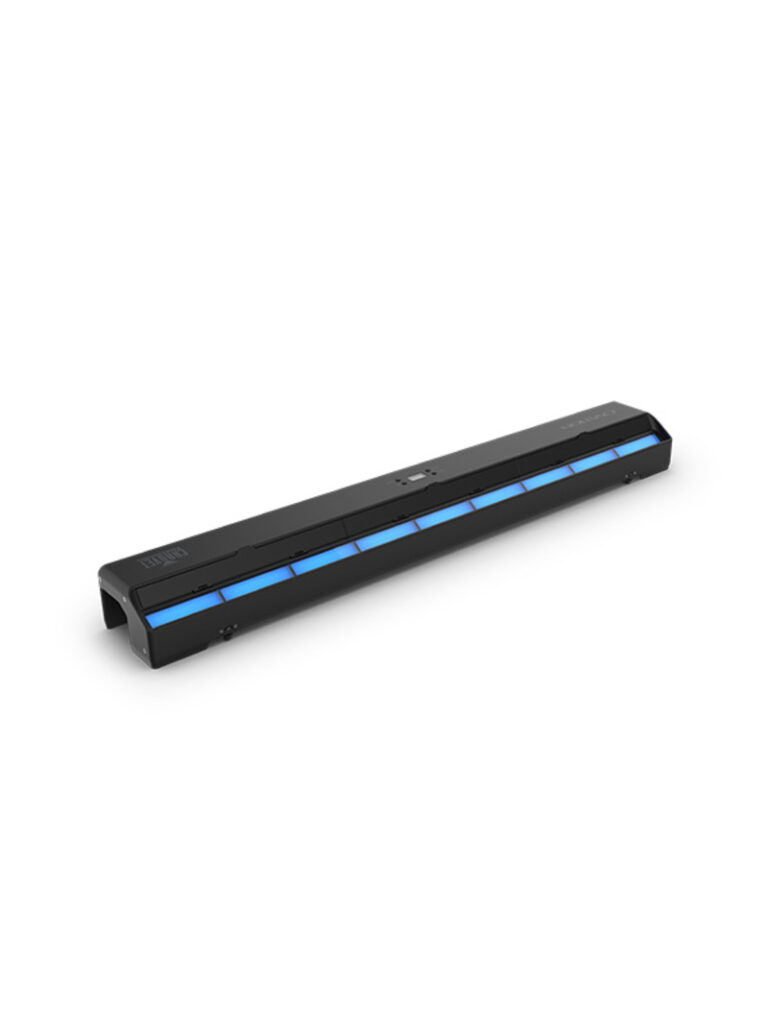

Chauvet Ovation CYC 3 FC

Beschrijving

OPTICAL | Light Source: 180 LEDs (36 red, 36 green, 36 blue, 36 amber, 36 lime) 2.5 W to 3.5, (725 mA) | Color Temperature (range): 2800 to 6500 K | CRI (3200K): 90 | Beam Angle (Horizontal): 111.4° | Field Angle (Horizontal): 151.8° | Beam Angle (Vertical): 76.7° | Field Angle (Vertical): 134.4° | Lumens : 19,575 | Illuminance (total): 280 lux @ 5 m | PWM Frequency: 600, 1200, 2000, 4000, 6000, 25,000 Hz | DYNAMIC EFFECTS | Dimmer: Electronic | Shutter/Strobe: Electronic | Strobe Rate: 0 to 29 Hz | Standalone Color Mixing: Yes | Color Temperature Presets: Yes | Dim Modes: 4 | Dim Curves: 4 | Built-in Automated Programs: Yes | Customizable Programs: No | Recall Custom Programs: No | CONSTRUCTION / PHYSICAL | Dimensions: 47.13 x 6.30 x 4.33 in (1197 x 160 x 110 mm) | Weight: 24.6 lb (11.2 kg) | Exterior Color: Black | Housing Material: Aluminum die-cast | CONNECTIONS | Power Connection: Edison (Local) plug to Seetronic Powerkon IP65 | Power Input: Seetronic Powerkon IP65 | Power Output: Seetronic Powerkon IP65 | Data Connectors: 5-pin XLR | Cable Length (power): 5 ft (1.5 m) | CONTROL | Control Protocol: DMX, RDM | DMX Channels: 1, 3, 5, 7, 10, 12, 13, 16, 17, 33 | Modes/Personalities: 11 personalities (1, 3, 5, 7, 10, 12, 13, 16, 17, 33, HSV) | ELECTRICAL | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) | Power Linking: 4 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V | Power and Current: 345 W, 2.93 A @ 120 V, 60 Hz | Power and Current: 338 W, 1.77 A @ 208 V, 60 Hz | Power and Current: 334 W, 1.64 A @ 230 V, 50 Hz
