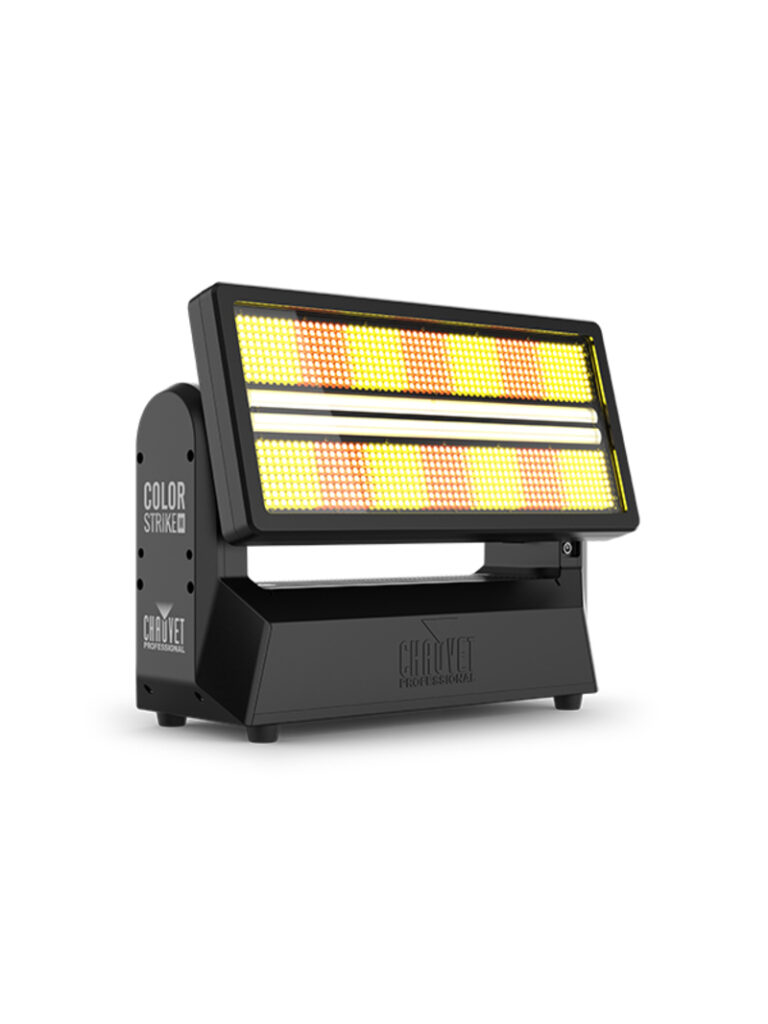

Chauvet Color STRIKE M

Beschrijving

Features | High-power, 180° tilting hybrid strobe/wash with IP65 rating for all-weather use. | 14 controllable sections of RGB LEDs and 28 sections of control of the white strobe LEDs. | Multiple mounting locations and repositionable yoke with ¼ turn adaptors for creative and convenient rigging options in vertical and horizontal orientations | Multitude of built-in effect macros with control parameters | DMX, ArtNet and sACN control capability | 16-bit dimming control for smooth, perfect fades | Easy to use OLED display | Rugged design for years of rough use in the most extreme conditions. | Adjustable Pulse Width Modulation (PWM) and RDM (Remote Device Management) for added flexibility | USB port for fixture software updates | Built-in alignment pins to insure perfectly straight linear arrays | Specifications | OPTICAL | Light Source: 896 LEDs (tri-color) SMD 5050, 0.784 W, (252 mA), 50,000 hours life expectancy | Light Source: 432 LEDs, (CW) 1.56 W, (696 mA), 5861K, 50,000 hours life expectancy | Color Temperature (at full): 7757 KCRI: 90.3 | Beam Angle (Combine): 98° x 57° | Beam Angle (Plate): 123° | Beam Angle (Beam): 95° x 50° | Field Angle (Combine): 146° x 122° | Field Angle (Plate): 160° | Field Angle (Beam): 138° x 100° | Lumens (Combined): 71,620 | Lumens (Plate): 18,600 | Lumens (Beam): 54,381 | Illuminance (Combined): 1591 lux @ 5 m | Illuminance (Plate): 231 lux @ 5 m | Illuminance (Beam): 1432 lux @ 5 m | Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz | DYNAMIC EFFECTS | Tilt: 180° | Tilt Ranges: 0° to 180° | Dimmer: Electronic | Shutter/Strobe: Electronic | Strobe Rate: 0 to 30 Hz | Standalone Color Mixing: Yes | Dim Modes: 4 | Built-in Automated Programs: Yes | CONSTRUCTION / PHYSICAL | Dimensions: 16.02 x 6.90 x 12.30 in (407 x 175.4 x 312.5 mm) | Weight: 26.6 lb (12.1 kg) | Exterior Color: Black | Housing Material: Magnesium alloy | CONNECTIONS | Power Connection: Edison (Local) plug to Seetronic Powerkon IP65 | Power Input: Seetronic Powerkon IP65 | Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65 | Cable Length (power): 5 ft (1.5 m) | CONTROL | Control Protocol: Art-Net, DMX, RDM, sACN | DMX Channels: 8, 11, 13, 22, 74 or 89 | Art-Net Channels: 8, 11, 13, 22, 74 or 89 | Modes/Personalities: 6 personalities (8, 11, 13, 22, 74, 89) | ELECTRICAL | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) | Power and Current: 720 W, 7.14 A @ 100 V, 60 Hz | Power and Current: 740 W, 6.36 A @ 120 V, 60 Hz | Power and Current: 716 W, 2.35 A @ 208 V, 60 Hz | Power and Current: 696 W, 3.27 A @ 230 V, 50 Hz | Power and Current: 709 W, 3.02 A @ 240 V, 50 Hz
