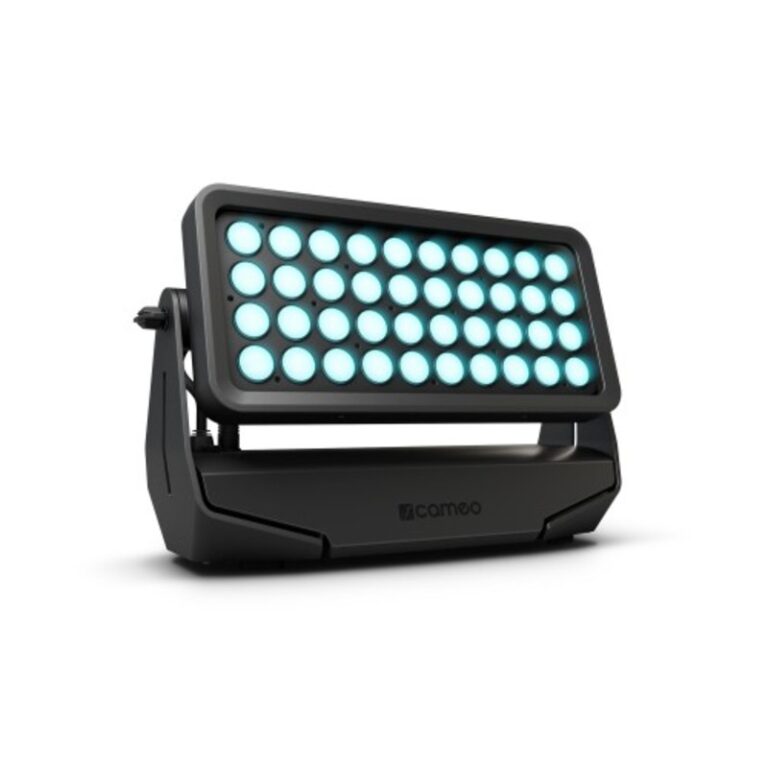

Cameo ZENIT® W600

Beschrijving

Features | 40 x 15 W RGBW LEDs with 21,000 lm total output for uniform and powerful colour mixing | 18° beam and 35° field angles without diffuser | Optional SnapMag® filter frames for 25°, 45°, 100° or elliptical 60° x 10° beam angle selection and installation without tools or dismantling | Built-in 2.4 GHz W-DMX™ transceiver | Wireless master-and-slave function | Wireless DMX, RDM (via DMX and W-DMX™), standard DMX plus standalone modes with automated programs | IP65 rating for permanent outdoor use | Temperature controlled fans for optimized operation and low noise | 16-bit technology for high-resolution colours and dimming | Specifications | Product type: LED Outdoor Wash Light | Type: ZENIT | Colour spectrum: RGBW | Number of LEDs: 40 | LED type: 15 W | Average LED lifetime: 50000 hrs. | Refresh rate Adjustable: 800Hz, 1200Hz, 2000Hz, 3600Hz, 12000Hz, 25000 Hz | Dispersion | 18° Beam | 35° Field (without diffusor) | Lens: PE and tempered glass | DMX input: 5-pin IP65 | DMX output: 5-pin IP65 | DMX mode: 10-channel , 15-channel , 2-channel , 3-channel , 4-channel , 8-1 Channel , 8-2 Channel | DMX Functions: Auto programs , colour macro , CTC (Colour Temperature Correction) , Dimmer , Dimmer Curve , Dimmer Fine , Dimmer Response , RGBW , RGBW Fine , strobe | Standalone modes: Auto programs , colour macro , Master / Slave mode , Settings , Static , system info , Tunable White , User Colours | Controls: Enter , Mode , Value Down , Value Up | Indicators: OLED Display | Operating voltage: 100 V AC – 240 V AC, 50 – 60 Hz | Power consumption: 565 W | power factor: 0.99 PF (120V) / 0.96 PF (230V) | Power connector: IP65 | Power supply connection: IP65 | Housing material: Aluminum | Cabinet colour: Black | Protection class IP: IP65 | Cooling: IP65 temperature-controlled fans | Luminous flux: 21000 lm | Efficiency: 37.2 lm/W | Operating Temperature: -15 – 45 °C | Accessories (included): 2 x omega mounting | Other features: ETL certified | Dimensions including Mounting Bracket | Width: 463 mm | Length: 291 mm | Height: 161 mm | Weight: 13 kg
