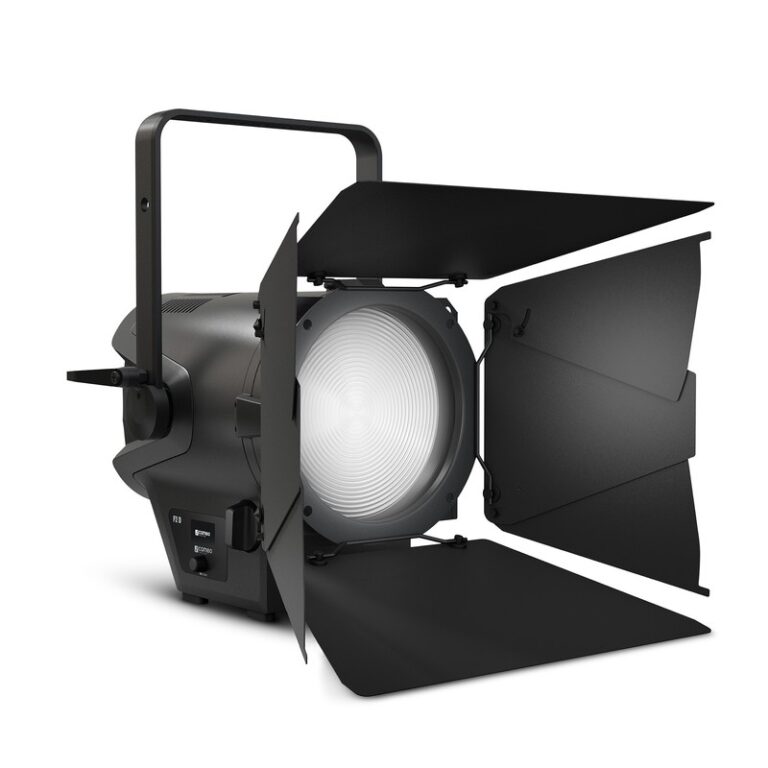

Cameo F2 D

Beschrijving

Features | Daylight LED Fresnel with 5,400 K colour temperature and 15,000 lm output | Perfect replacement for conventional 1 kW Fresnels | Faithful colour reproduction, CRI rating of 96, TLCI of 97 | Continuously variable zoom for 15° to 40° beam spread | 16-bit dimming with 4 selectable curves and adjustable response | Super efficient heat pipe cooling and temperature controlled fan for optimum operation | RDM enabled | Selectable PWM frequencies up to 25 kHz | Flicker-free and silent operation, ideal for TV, film and theatre applications | Includes 8-way barn door and gel frame | Specifications | General | Product type: LED Fresnel Spotlight | Type: Theater Fresnel | Colour spectrum: Cold White (5400K) | Number of LEDs: 1 | LED type: 240 W (ca. 50,000 Operating Hours) | Refresh rate: Adjustable: 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12000 Hz, 25000 Hz | Dispersion: Beam Angle: 16 ° – 40 °, Field Angle: 28 ° – 60 ° | Lens: 200 mm Fresnel | DMX input: 5-Pol | DMX output: 5-Pol | DMX mode: 1-channel, 2-channel 1, 2-channel 2, 3-channel, 4-channel, 5-channel | DMX Functions: Device Settings, Dimmer, Dimmer Curve, Dimmer Fine, Strobe | Standalone modes: Master / Slave mode, Static | Controls: Encoder | Indicators: OLED Display | Operating voltage: 100 V AC – 240 V AC, 50 – 60 Hz | Power consumption: 210 W | Power connector: TRUE1 Compatible Power I/O Socket | Housing material: Die-cast aluminium | Cabinet colour: Black | Protection class IP: IP20 | Cooling: Combination of Heat Pipe and Temperature Controlled Fan | Luminous flux: 15,000 lm | Efficiency: 63 lm/W | Color temperature: 5400 K | Ambient temperature (operating): -15 – 45 °C | Weight: 9 kg | Dimensions (W x H x D, without Mounting Bracket and Sash Limiter) | Width: 270 mm | Height: 292 mm | Depth: 322 mm | Accessories (included): 8-way barndoor, gel frame, Power cord)
