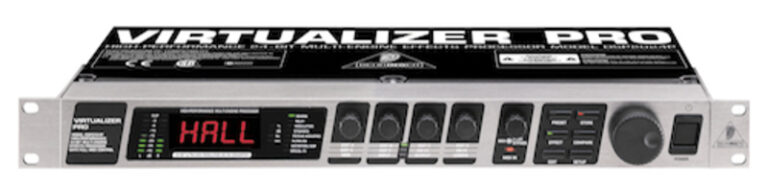

Behringer Virtualizer Pro DSP2024P

Beschrijving

ANALOG INPUTS | Connectors: XLR and 1/4″ TRS | Type: RF filtered, servo-balanced input stage | Impedance: 80 kΩ balanced | Nominal Operating Level: -10 dBV or +4 dBu (selectable) | Max. Input Level +15 dBu at +4 dBu nominal level, +1 dEN at -10 dBV nominal level | ANALOG OUTPUTS | Connectors XLR and 1/4″ TRS | Type: Electronically servo-balanced output stage | Impedance: 80Ω balanced | Max. Output Level: +15 dBu at +4 dBu nominal level, +1 dBV at -10 dBV nominal level | SYSTEM SPECIFICATIONS | Bandwidth: 20 Hz to 20 kHz, +/- 3 dB | SNR: 91 dB, unweighted, 20 Hz to 20 kHz | THD: 0.018 % typ. ig +4 dBu, 1 kHz, 0 dBu input, gain 1 | Crosstalk <-76dB | MIDI INTERFACE | Type: 5-pin DIN-socket IN / OUT /THRU | DIGITAL PROCESSING | Converters: 24-bit Sigma-Delta, 64/128- times oversampling | Sampling Rate 46.875 kHz | DISPLAY | Type 4-digit 14 segment alpha-numeric LED-Display | POWER | Power Consumption 15 Watt max. | Mains Connection Standard IEC receptacle | PHYSICAL | Dimensions (H x W x D) 44x482,6x204,4mm | Net Weight: approx 2 kg
