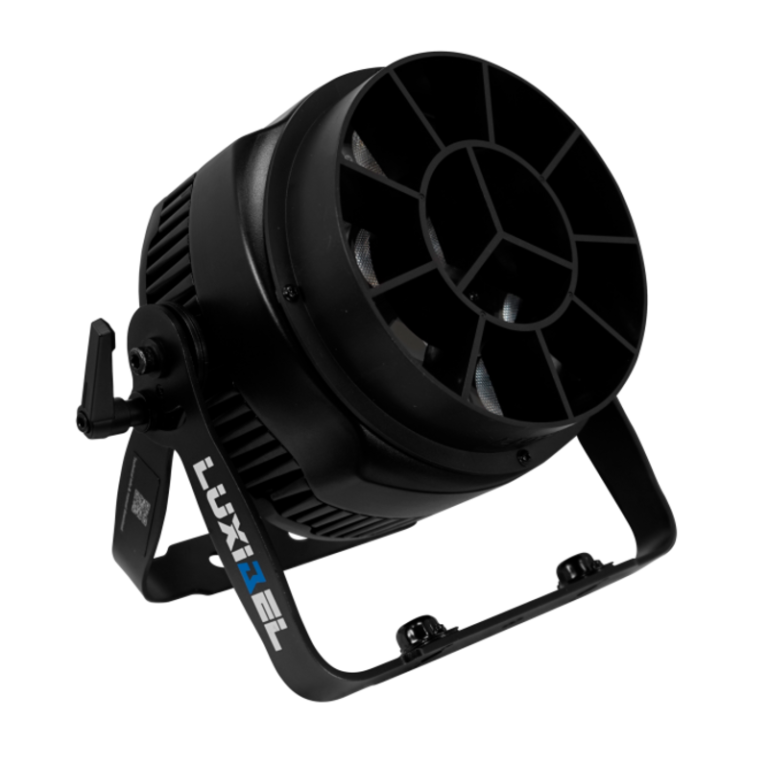

B PAR180RGBW V2

Beschrijving

PHYSICAL | Dimensions (WxHxD) | 280 x 288 x 143 mm | Nett weight | 4,7 kg | MOUNTING OPTIONS | Hanging | 1 omega bracket with 2x 1/4 turn quick-lock fastners & 1 M12 hole in the middle of the omega brackets | Standing | Double bracket – adjustable opening angle | 2nd suspension / safety wire | 1x moulded eye on the housing to pass a safety wire or carabiner | CONTROL | Menu control | Via TFT display with 4 buttons | In/Link | XLR 5 pin | Control | DMX512, manual, master/slave | DMX mode | 4/6/8/9/14 channels | Dimmer mode | 0 – 100% – 8bit | OPTICAL | LED sources | 12x 15W LED RGBW | Beam angle | 25° (fixed) | Light output RGBW @ full (without tophat) | 6210 lux @ 2m | 1523 lux @ 4m | 622 lux @ 6m | Strobe | 0-20 Hz | Dimming curves | 4 | Colours | Red, green, blue + white | 8 bit colour mix | ELECTRICAL | Fixture rated power | 165W | Input power | 100 – 240V ~ 50/60 Hz – Auto switching power supply | LED engine | 12x 15 W | RGBW 4 in 1 | In/Link | PowerCON TRUE1 – max link current 10A | Refresh rate | 1.200 Hz | ENVIRONMENTAL | IP Rating | IP65 | Cooling | Electronic heat control (no fans)
