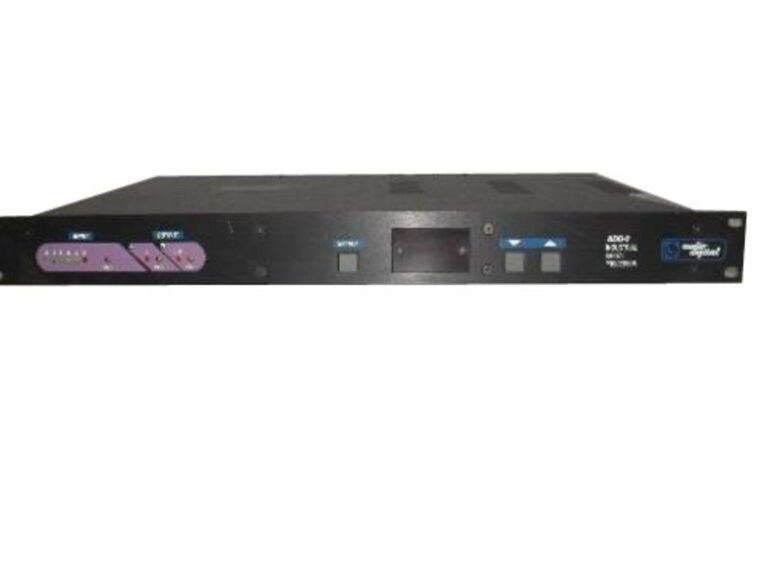

Audio Digital ADD-2

Beschrijving

Input | 10KΩ input impedance, electronically balanced | Gain control allows input levels form -5dB to +22dB | 3-pin XLR connector | Output | Electronically balanced, 600Ω | Source impedance less than 60Ω | Attenuation control adjusts from unity to -80dB, output clip indicators to indicate out stage overdrive | 3-pin XLR connectors | Headroom display: Fast response 6-LED display with a -21dB to 0 dB range (with at least 4 dB of headroom) | Frequency Response: 20Hz – 20kHz ±5dB (passband response is ±5dB, rolloff points are ±3dB) at all delays settings | Distortion (THD + Noise) No Weighting: Greater than 0,4 at 1 kHz, 0dB out | Dynamic Range: At least 92dB at 1kHz (un-weighted) | Delay range | microsecond mode: 15us steps to 9900 us | Milisecond mode: 1ms steps to 490ms | Minimal increment: 15us | Digital conversion: 16 bit linear PCM | Memory retention: Battery-backed non-volatile RAM retains all delay setting for at least 5 years | Power requirements: | 90-140VAC, 60Hz | 198-250VAC, 60Hz | Weight: 5,4kg
