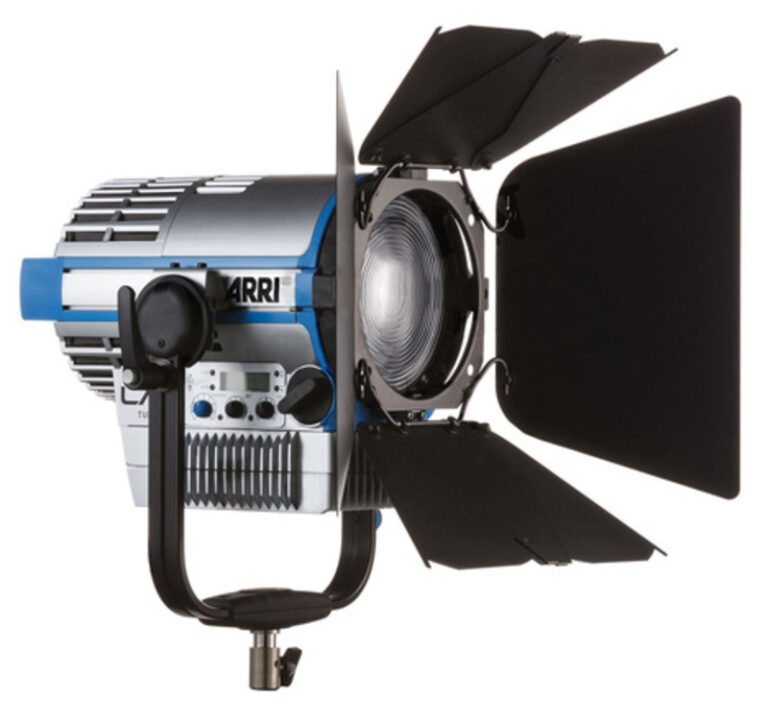

Arri L7-C

Beschrijving

SeriesL-Series: ModelL7-C | Optical SystemFocusable Fresnel | Light Aperture / Lens Diameter in mm175 mm | Light Aperture / Lens Diameter in inch7.0″ | Beam Angle: 15° to 50° Half Peak Angle | Weight in kg net* | Manual Version: approx. 9 kg | Pole Operated Version: approx. 10 kg | Weight in kg packed* | Manual Version: approx. 14 kg | Pole Operated Version: approx. 14 kg | Weight in lbs. net* | Manual Version: approx. 18 lbs | Pole Operated Version: approx. 22 lbs | Weight in lbs. Packed* | Manual Version: approx. 31 lbs | Pole Operated Version: approx. 31 lbs | Measurements (HxWxL) incl. Pin in mm* | Manual Version: 571 x 374 x 351 mm | Pole Operated Version: 582 x 357 x 351 mm | Measurements (HxWxL) excl. Pin in mm* | Manual Version: 438 x 374 x 351 mm | Pole Operated Version: 467 x 357 x 351 mm | Measurements (HxWxL) incl. Pin in inch* | Manual Version: 22.5 x 14.7 x 13.8″ | Pole Operated Version: 22.9 x 14.0 x 13.8″ | Measurements (HxWxL) excl. Pin in inch* | Manual Version: 17.2 x 14.7 x 13.8″ | Pole Operated Version: 18.4 x 14.0 x 13.8″ | Measurements (HxWxL) Packed size in mm*: 540 x 500 x 380 mm | Measurements (HxWxL) Packed size in inch*: 21.3 x 19.7 x 15.0″ | Handling: Adjustable Sliding Stirrup, High-Strength Tilt Lock / Pole Operation Option (Pan, Tilt and Focus) | Mounting: 28 mm Spigot (Junior Pin) | Tilt Angle: +/- 90° | Lamphead Voltage Input: 100 to 250 V ~, 50/60 Hz | Power Consumption | 160 W Nominal | 220 W Maximum | Power ConnectionpowerCON TRUE1 (Bare Ends / Schuko / Edison) | Battery Connector- | Battery DC Voltage Range- | White Light: 2,800 K to 10,000 K continuously variable correlated color temperature | Colored Light: Full RGB+W Color Gamut with Hue and Saturation Control | Color Temperature Tolerance: +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal) | Color Rendition: CRI Average > 94, TLCI Average > 90 | Green-Magenta Adjustment: Continuously adjustable (Full Minusgreen to Full Plusgreen) | Dimming: 0 to 100 % continuous | Control: 5-Pin DMX In and Through, On-Board Controller, Mini-USB | Wireless Control: Not integrated, via SkyLink | Remote Device Management (RDM): DMX Setup, Hour Counter and Standard RDM Commands | Software / Mini-USB Interface: DMX Setup, Fixture Status and Firmware Upgrade through PC | Housing Color: Blue/Silver, Black | Ambient Temperature Operation: -20 to +45° C (-4 to +113° F) | Protection Class / IP Rating: I / IP20 | Estimated LED Lifetime (L70): 50,000 hours | Estimated Color Shift Over Lifetime (CCT): +/- 5 % | Certifications: CE, CB, GS, cNRTLus, FCC, PSE
