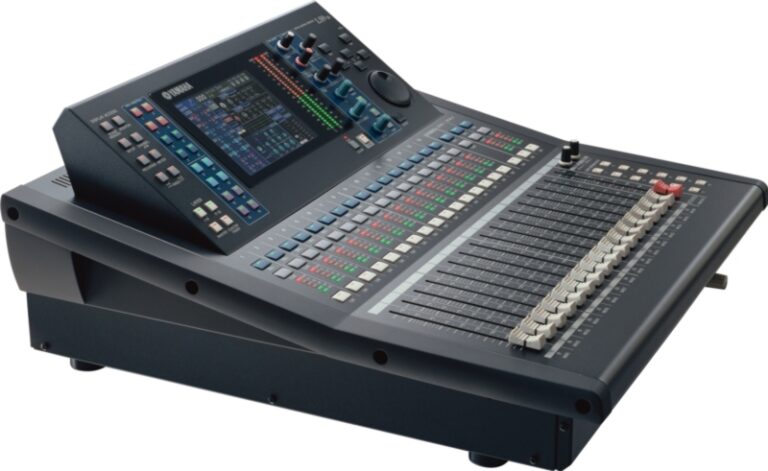

Yamaha LS9-16

Beschrijving

16 or 32 top-performance recallable head amplifiers deliver microphone and line sources with extraordinary presence and realism | An additional 16 or 32 channels of processing power ready to receive audio via the Mini-Ygdai expansion slots providing a total of 32 or 64 channels | 4 stereo input channels | An extensive range of channel functions accessible via Yamahaâ??s acclaimed Selected Channel interface | Versatile bus architecture with comprehensive digital patching capability (16 mix buses 8 matrix buses and a stereo and mono bus that can be used in LCR mode) | Virtual GEQ and effect rack offers easy access to built-in graphic equalization and effects that would fill a full-size rack or two if similar analog gear were used | Built-in USB memory recorder/player eliminates the need for an external device for simple off-board recording and can supply background music and sound effects as required | Full-console scene store and recall | Ready to use out of the box with pre-patched effects and pre-fader aux mixes for monitor sends | One or two Mini-YGDAI slots for easy system expansion | Depth : 500 mm | Dynamic Range : 110dB DA converter (Omni out) 108dB AD+DA (Omni out) | Height : 220 mm | Power Consumption : 95 W | Power Requirements : 100 to 240Vac 50/60Hz | Total Harmonic Distortion : <0.05 % (at 20Hz to 20kHz) | Width : 480 mm | Signal Delay : <2.5 ms (INPUT to OMNI OUT at 48kHz) | Internal Processing : 32-bit (58-bit accumulator) | Hum and Noise Level : -128dB equivalent input noise -84dB residual output noise (20Hz to 20kHz 150 Ohms Rs maximum input gain) | Product Weight : 12.02 kg | Crosstalk (at 1kHz) : -100 dB (adjacent input channels and input to output) | Minimum Frequency Response (Bandwidth) : 20 Hz | Maximum Frequency Response (Bandwidth) : 20 kHz | Rackmountable : Yes | Internal sampling frequency rate : 44.1 and 48 kHz | External sampling frequency rate : 44.1 (-10%) to 48 (+6%) kHz
