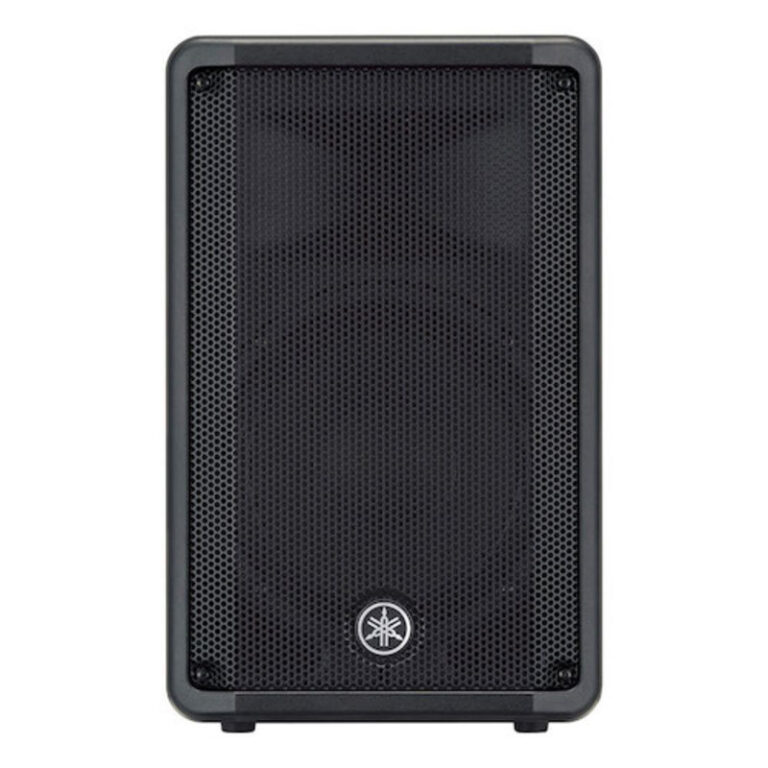

Yamaha DBR10

Beschrijving

Speaker type: 2-way, Bi-amp powered speaker, Bass-reflex type | Frequency range (-10dB): 55Hz – 20kHz | Nominal coverage | H 90° | V 60° | Components | LF Diameter:10″ cone, Voice Coil:2″, Magnet:Ferrite | HF Diaphragm:1″, Type: 1″ throat compression driver, Magnet:Ferrite | Crossover 2.1kHz: FIR-X tuning™ (linear phase FIR filter) | Output power | Dynamic:700 W (LF: 500 W, HF: 200 W) | Continuous: 325 W (LF: 260 W, HF: 65 W) | Maximum output level (1m; on axis): 129dB SPL | I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) | Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF | Heat dissipation: Fan cooling, 4 speeds | Power requirements: 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz | Power consumption: 60W(1/8 Power Consumption), 18W(Idle) | Cabinet material: Plastic | Finish: Black | Handle: Top x 1 | Flying and mounting hardware: Bottom x 2 (Fit for M8 x 15 mm eyebolts) | Pole socket: 35mm (Bottom x 1) | Dimensions | W 308mm (12.1″) | H 493mm (19.4″) | D 289mm (11.4″) | Net weight: 10.5 kg (23.2 lbs)
