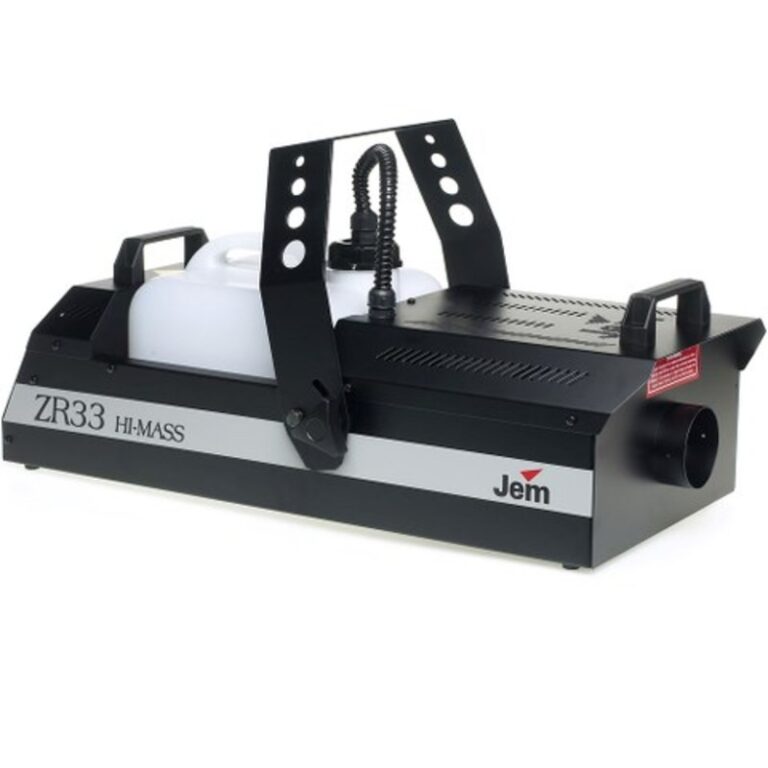

Martin Jem ZR33 Hi-Mass

Beschrijving

Physical | Length: 685 mm | Width: 345 mm | Height: 225 mm | Dry weight: 19 kg | Performance | Max. fog output (approx.): 1000 m3 per minute | Max. operating time at full output (approx.): 180 minutes | Operating time: Continuous, automatic level adjustment | Warm-up time (approx.): 8 minutes | Control and Programming | Control options: Remote control (supplied), DMX, 0-10 V analog | Remote control features: Instant or timer-controlled variable output | Delay 2-144 seconds, run time 2-144 seconds: | DMX channels: 1 | Protocol: USITT DMX512/1990 | Construction | Housing: Steel & aluminum | Heat exchanger: 1500 W, direct thermal protection | Fluid System | Fluid pump: Oscillating piston, high pressure X2 Onboard fluid capacity: 9.5 l | Fluid consumption at peak output: 150 ml per minute | Installation | Orientation: Floor or flying kit | Connections | Remote control: 3-pin locking XLR DMX data: 3-pin locking XLR | 0-10 V analog: 3-pin locking XLR Power cable entry: Hard-wired | Electrical | AC power (EU models): 220-240 V nominal, 50 Hz | AC power (US models): 110-120 V nominal, 60 Hz | Main fuse (220-240 V power): 10 A | Main fuse (110-120 V power): 20 A
