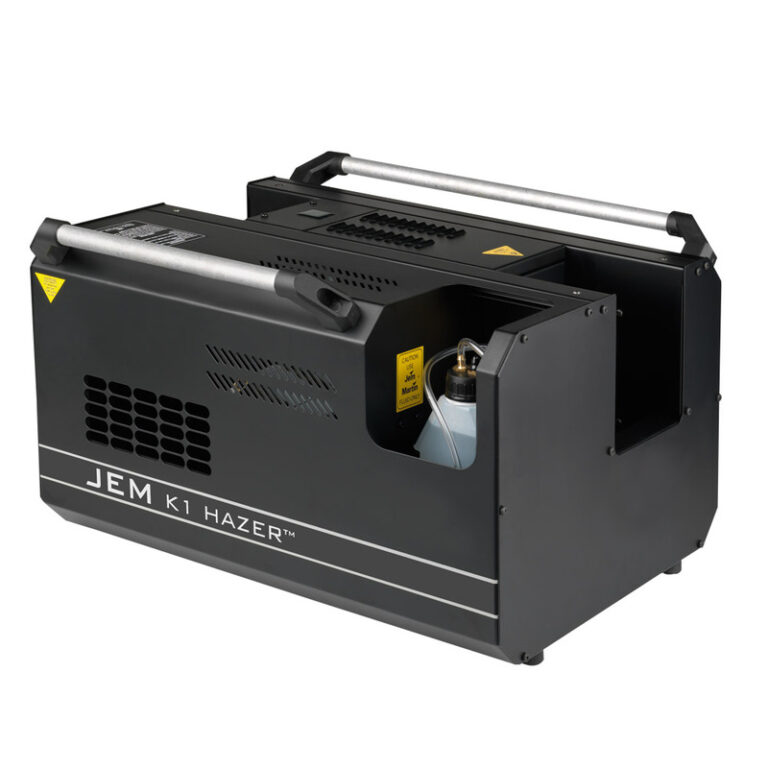

Martin Jem K1

Beschrijving

Physical | Length: 544 mm | Width: 459 mm | Height: 344 mm | Dry weight: 21.5 kg | Performance | Coverage volume: 5000 m3 per minute | Max. operating time at full output (approx.): 17 hours | Operating time: Continuous, automatic level adjustment | Warm-up time (approx.): 5 minutes | Control and Programming | Control options: Onboard control panel with 4-digit display | Control options: Instant or timer-controlled output, 0-100% adjustable output level Control options: Adjustable Fan Speed Level | DMX channels: 2 (output and fan) | Optional digital remote control: 92765036 | Construction | Housing: Steel & aluminum | Heat exchanger: 600 W, direct thermal protection | Fluid System | Fluid pump: Oscillating piston, high pressure Onboard fluid capacity: 2.5 l | Fluid consumption at peak output: 140 ml per hour Compatible Fluids: Jem K1 Haze FluidTM only | Connections | Power connection: Neutrik PowerCon | DMX data: 3-pin and 5-pin XLR sockets | Remote control: 3-pin locking XLR | Electrical | AC power (EU models): 220-240 V nominal, 50 Hz | AC power (US models): 110-120 V nominal, 60 Hz | Main fuse (220-240 V power): 5 AT | Main fuse (110-120 V power): 10 AT | Typical Power and Current | EU model: 230 V, 50 Hz: 675 W, 3.1 A
