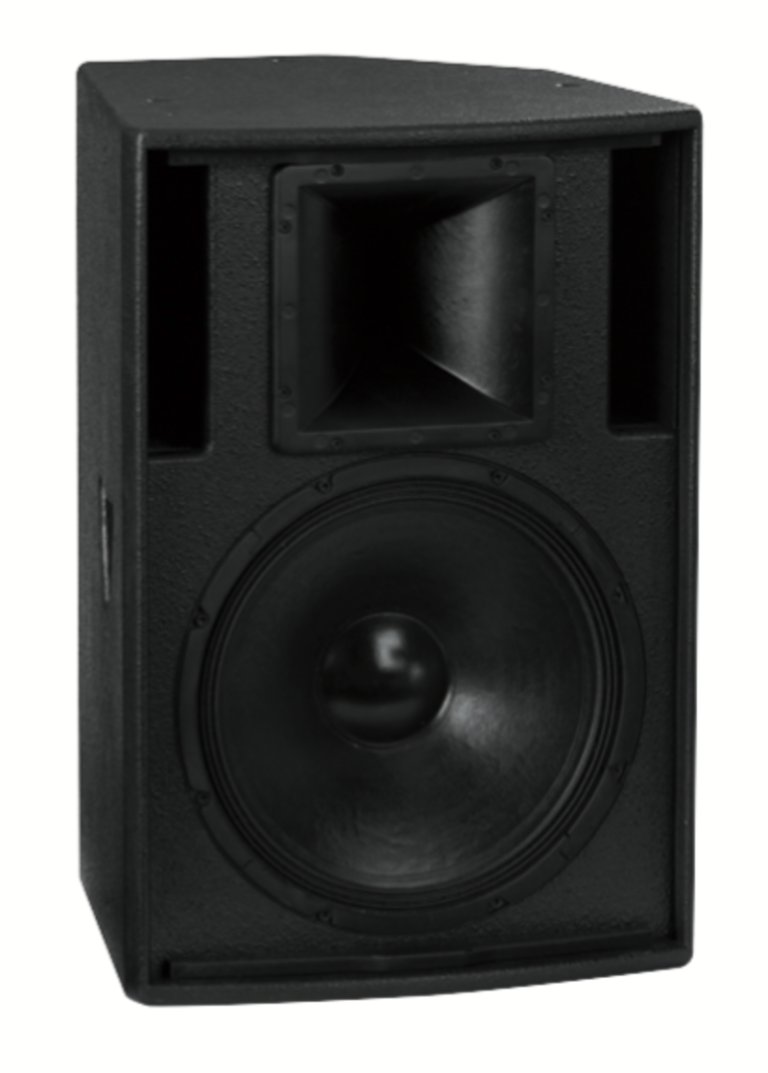

Martin Audio F15+

Beschrijving

Features | Wide-bandwidth system | User rotatable 80 ̊ x 50 ̊ horn | Top hat fitting for speaker stand mounting | 1.4” (35mm) exit compression driver | Specifications | TYPE: Compact, two-way passive | FREQUENCY RESPONSE (5: 55Hz-18kHz ± 3dB -10dB @ 45Hz | DRIVERS: | 15” (380mm)/3” (75mm) voice coil, neodymium magnet LF driver | 1.4” (35mm) exit HF compression driver | RATED POWER (2): 400W AES, 1600W peak | RECOMMENDED AMPLIFIER: MA3.0 | SENSITIVITY (6): 100dB | MAXIMUM SPL (9): 126dB continuous, 132dB peak | NOMINAL IMPEDANCE: 8 ohms | DISPERSION (-6dB): 80 ̊ horizontal, 50 ̊ vertical | CROSSOVER: 1.4 kHz passiv | ENCLOSURE: 68 litre, multi-laminate birch ply | FINISH: Textured black paint | PROTECTIVE GRILLE: Black perforated steel | CONNECTORS: 2x Neutrik NL4 | PIN CONNECTIONS: FR+,- : 1+,1- , Link thro’: 2+,2- | FITTINGS | 12 x M8 threaded inserts | 1 x mounting pole socket | 2 x pocket handles | DIMENSIONS: (W) 471mm x (H) 690mm x (D) 443mm | WEIGHT: 30,5kg
