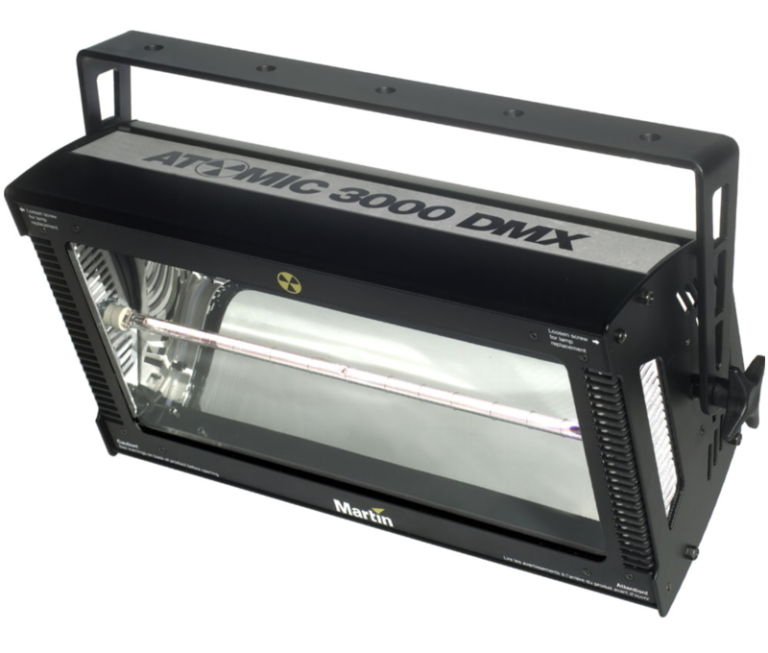

Martin Atomic 3000 DMX

Beschrijving

Physical | Length: 425 mm without bracket | Width: 245 mm without bracket | Height: 240 mm without bracket | Weight: 7.5 kg without bracket | Dynamic Effects | Variable strobe: 0 – 650 ms (50 Hz supply), or 0 – 530 ms (60 Hz supply) | Strobe rate: 0 – 25 flashes/second (50 Hz supply), 0 – 30 flashes/second (60 Hz supply) Blinder effect: Continuous with auto fade | Strobe intensity: Blackout – maximum | Special effects: Ramp up, ramp down, ramp up-down, random flash, lightning, spikes, blinder, single flash | Control and Programming | Control options: DMX, stand-alone, multi-fixture chase (with Detonator remote), MC-1 | DMX channels: 1, 3, and 4 channel modes | Stand-alone control: Via N.O. or N.C. SPST switch | Stand-alone options: Selectable flash rate or blinder effect | Setting and addressing: DIP switch | DMX Compliance: USITT DMX512/1990 | Receiver: RS-485 | Lamp | Type: Xenon discharge | Approved lamps: MAX-15 Xenon (200-240 V power), MAX-7 Xenon (100-120 V power) | Construction | Housing: Steel | Finish: Electrostatic powder-coated | Color: Black | Installation | Minimum distance to combustible materials: 0.5 m | Minimum distance to illuminated surfaces: 1 m | Minimum clearance around fan and air vents: 0.1 m | Orientation: Any | Mounting points: Five 12 mmholes in mounting bracket | Connections | Power connection: 1.5 m  cable tail, 14 AWG | DMX data in/out: 3-pin and 5-pin XLR sockets
