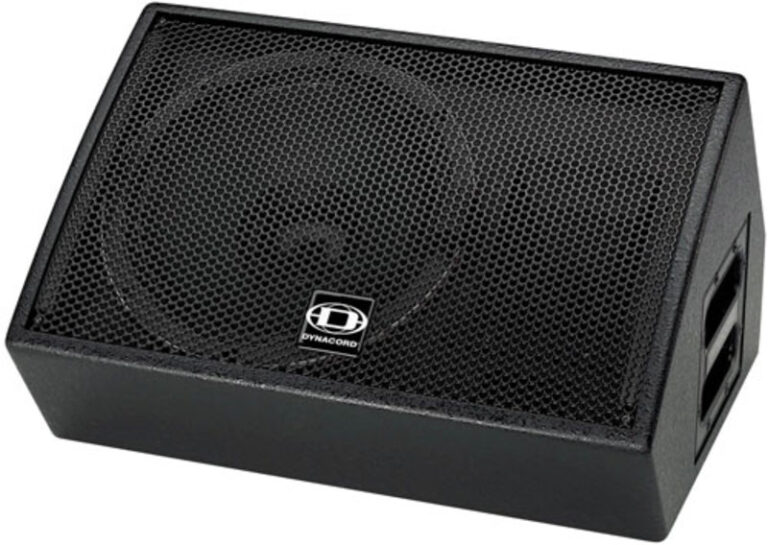

Dynacord AM 12

Beschrijving

Minimum Load Impedance, External Speaker 8 ohms | Maximum Midband Output Power, THD=1% 300W (1kHz) | Rated Output Power, THD<0.2% 250W (100Hz - 20kHz) | Max. Output Power, Dynamic-Headroom, IHF-A 450W | Maximum RMS Voltage Swing, THD=1% 46.8V (1kHz) | THD at rated output power, MBW=80kHz < 0.1% (1kHz) | IMD-SMPTE, 60 Hz, 7 kHz < 0.2% | DIM30, 3.15 kHz, 15 kHz < 0.1% | Frequency Response, -1dB, ref. 1 kHz 30Hz - 30kHz | Power Bandwith, THD=1%, half power 14Hz - 20kHz | Slew Rate 24V/µs | Signal to Noise Ratio, A-weighted 104 dB | SPECIFICATIONS High Frequency Amplifier | Maximum Midband Output Power, THD=1% 50W (10kHz) | Rated Output Power, THD<0.2% 40W (3kHz - 20kHz) | Max. Output Power, Dynamic-Headroom, IHF-A 60W | Maximum RMS Voltage Swing, THD=1% 23.3V (10kHz) | THD at rated output power, MBW=80kHz < 0.1% (10kHz) | Frequency Response, -1dB, ref. 1 kHz 12.5kHz - 57kHz | Power Bandwith, THD=1%, half power 2kHz - 68kHz | Slew Rate 17V/µs | Signal to Noise Ratio, A-weighted 105dB | SPECIFICATIONS Fullrange Amplifier, High Frequency Amplifier | Power Consumption, at 1/8 maximum output power @ 4ohms 170W | Input Sensitivity, at rated output power @ 1 kHz MIC: - 34dBu, LINE : 0 dBu, AUX: -3dBu | Input Impedance, 20Hz ... 20 kHz, balanced MIC: 1.3kohms, LINE: >10kohms, AUX: 8kohms (unbalanced) | Phantom Power 24V dc | Power Requirements 230V, 50Hz | Protection Audio limiters, High temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn-on delay, speaker protection | Cooling convection cooled | Safety Class I | Dimensions (W x H x D), mm 530.5 x 355 x 344 | Weight 21kg
