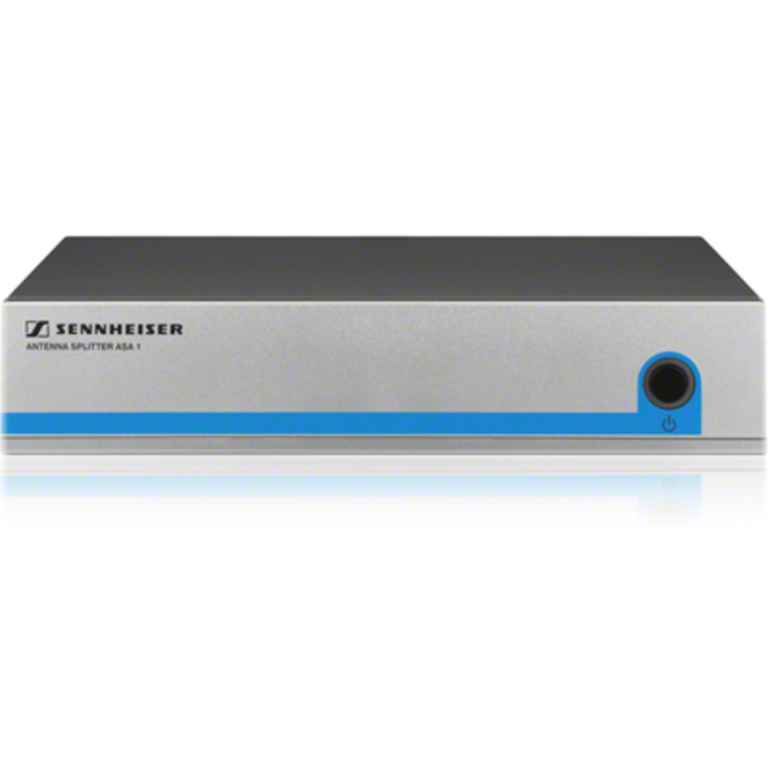

Sennheiser ASA 1

Beschrijving

Designed to enable routing of UHF antenna signals to several receivers in a multi-channel system | Up to four diversity receivers may be supplied with signal by only two antennas | Loss-free operation of multi-channel G3 wireless systems | Cascading enables the operation of up to 8-channels of wireless through two antennas | Power is supplied to the connected ew G3 receivers through the BNC antenna cables | Single NT 1-1 mains power unit | Suitable for multi-channel RF installations and permanent installations in small conference centers and similar venues | Frequency Range : 500 to 870 MHz | Dimensions : 212 x 168 x 43 mm | Regulatory Compliance : FCC IC | Relative Humidity : 5 to 95 %RH | Storage Temperature Range : -20 to +70 °C | DC Voltage : 13.80 Volts | Product Weight : 1.09 kg | Certifications : CE | Input Impedance : 50 ohm | Operating Temperature (Maximum) : 55 C | Operating Temperature (Minimum) : -10 C | Current Draw : 2 Amps | Supply voltage of antenna boosters : 12V 130mA | Supply voltage of receivers : 12V 350mA
