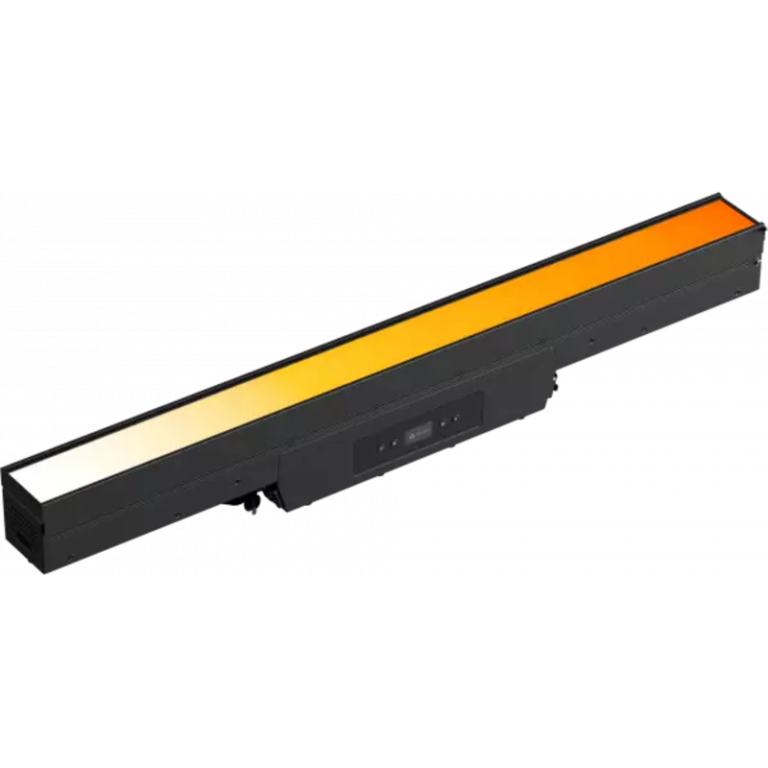

Prolights EclSoft LinearIP

Beschrijving

Features | 230W RGB + Warm White engine, producing nearly a 13,000 lumen output | CRI > 92 R9 > 96; TLCI > 87 | 15 individually controlled pixels with built-in cinema effects engine | DMX/RDM control, Ethernet, and Wireless DMX (CRMX + W-DMX) | Specifications | LIGHT SOURCE | Source: 230W RGB + Warm White LED | Luminous flux: 12’994lm @4.000 K with LD filter | Lux: 220lx @5 m full | CRI: 92 @3.200 K; 93 @5.600 K | R9: 96 @3.200 K; 92 @5.600 K | TLCI: 89 @5.600 K | TM30 Rf: 91 @3.200 K; 90 @5.600 K | TM30 Rg: 107 @3.200 K; 106 @5.600 K | Source life expectancy: > 50.000 h | OPTICS | Beam angle: 103° | Field angle: 155° | Lens type: high-quality glass lens optics | Additional optics: Mountable Medium Density diffusion filter (included) | COLOUR SYSTEM | Colour mixing: RGB + Warm White | CCT: CCT control, + / – green correction, tungsten emulation | White presets: 2,800 K – 10,000K with 28 K resolution | Colour wheel: virtual colour wheel with macros | DYNAMIC EFFECTS | Control Resolution: 16-bit dimmer, colours | Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns | Special features: linear crossfade channel from any white to any colour; virtual CTO on colours | BODY | Body: sturdy die-cast aluminium body | Body colour: black | CONTROL | Protocols: DMX512, RDM, ArtNet, sACN, W-DMX + CRMX | Pixel control: 15 section control | Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX) | RDM: RDM for remote monitoring and settings | Display: Graphic User Interface | Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included | Master/Slave: for synchronised operation of more units linked in a chain | ELECTRONICS | Dimmer: linear 0 ~ 100% electronic dimmer | Dimmer curves: 4 selectable dimming modes available | Strobe / shutter: 1 – 30 Hz, electronic | Operating temperature: -20° ~ +45° | LED Control: flicker free frequency with adjustable PWM | Selectable PWM: 600 ~ 36.000 Hz | ELECTRICAL | Mains power supply: 100-240V – 50/60Hz | Low Voltage DC mains: 48Vdc | Max power consumption: 250W | Output (at 230V): 8 units on a single power line | Power factor: >0,97 | PHYSICAL | IP rating: 65 for temporary outdoor use (*) | Cooling: active, silent operation | Suspension and fixing: bracket for hanging and positioning | Signal connection: Seetronic XLR 5p IN/OUT connectors | Data connection: Seetronic Ethernet IP IN connector | Power connection: Seetronic powerCON TRUE IP65 IN/OUT | Low Voltage DC connector: XLR 3p for 48V | Dimensions (WxHxD): 1000x143x87mm / 39.37”x5.63”x3.43” | Weight: 7,1kg / 15.65lbs
