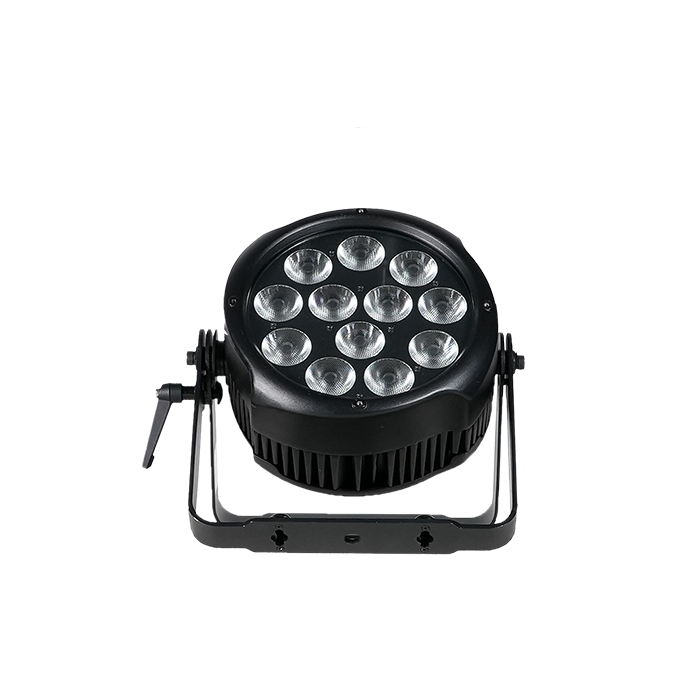

Luxibel B PAR180RGBW V2 IP66

Beschrijving

Physical | Dimensions (WxHxD) 280 x 288 x 143 mm | 11.0 x 11.3 x 5.6 in | Packaging dimensions (WxHxD) 280 x 310 x 280 mm | 11.0 x 12.2 x 11.0 in | Packaging dimensions (4 pieces) (WxHxD) 575 x 320 x 575 mm | 22.6 x 12.6 x 22.6 in | Net weight 5 kg | 11.2 lb | Gross weight 6,1 kg | 13.44 lb | Gross weight (4 pieces) 24,5 kg | 54 lb | Mounting options | Hanging 1 omega bracket with 2x ¼ turn quick-lock fastners & 1 M12 hole in the middle of the omega brackets | Standing Double bracket – adjustable opening angle | 2nd suspension / safety wire 1x moulded eye on the housing to pass a safety wire or carabiner | Optical | LED Sources 12x 15W LED RGBW | Beam angle 25° (fixed) | Strobe 0 – 20 Hz | Dimming curves 3 | Colors Red, Green, Blue and White | 8-bit color mix | Light output RGBW @ 2m 6210 lux | Light output RGBW @ 4m 1523 lux | Light output RGBW @ 6m 622 lux | Control | Menu control via TFT display with 4 buttons | Control DMX512, manual, master/slave | Dimmer mode 0 – 100% – 16 bit | In/link XLR 5 pin | DMX mode 4/6/8/9/15 channels | Tilt Movement One hand tilt locking | Electrical | Fixture rated power 165W | LED engine 12 x 15W SMD LED | RGBW 4 in 1 | Input power 100-240V ~ 50/60Hz – Auto switching power supply | In/Link PowerCON TRUE1 | max link current 10A | Refresh rate 1.200 Hz | Power factor 0.93 | Environmental | Cooling Electronical heat control (no fans) | IP Rating IP66
