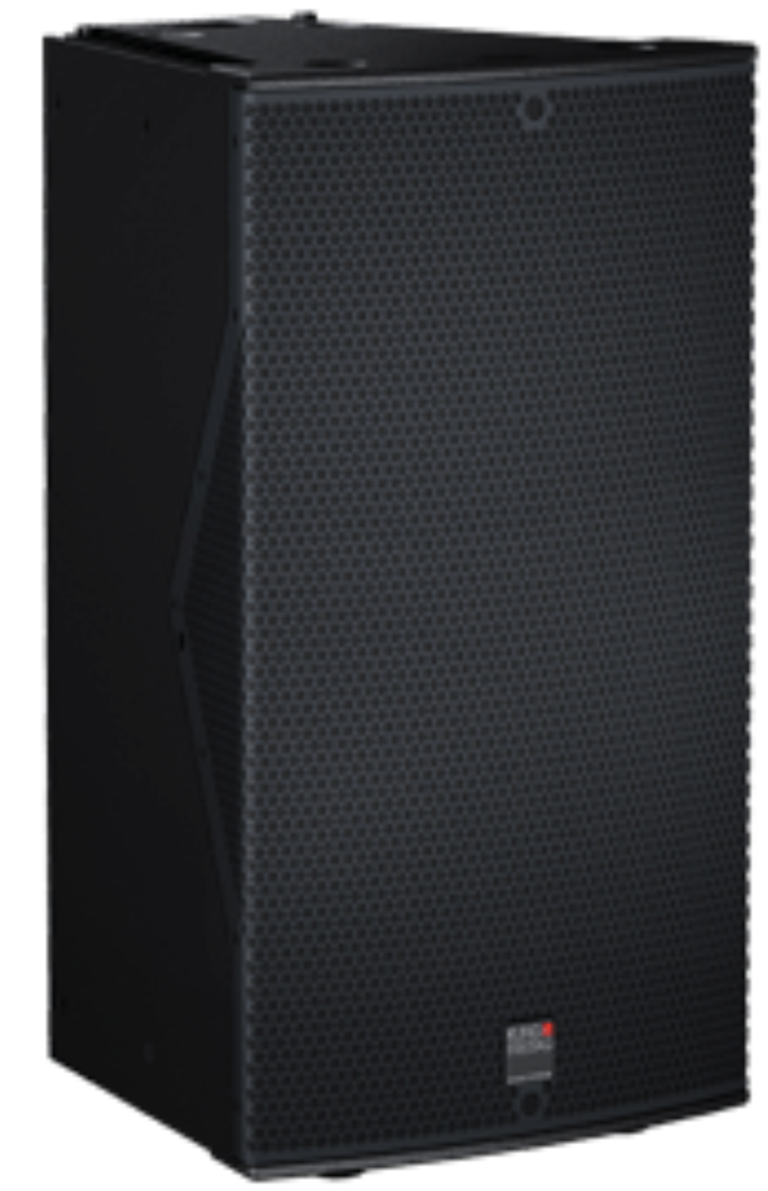

K&F Spectra 212 N

Beschrijving

Features | Convertible Line Array Speaker | Compact, three-way, high-performance top | Integrated and pantented K&F VariQ technology enables it to be used as a point source as well as Line Array | Quick setup in a few steps | An ideal tool for demanding sound reinforcement tasks, especially in acoustically difficult environments | Absolutely exemplary radiation behaviour in both operating modes | Specifications | Design: Passive 3-way system, 2-way active equalized | Frequency response -10 dB: | 56 Hz – 20 kHz (Full Range) | 83 Hz – 20 kHz (Low Cut) | Frequency response ±3 dB | 65 Hz – 18 kHz (Full Range) | 125 Hz – 18 kHz (Low Cut) | Nominal coverage angle | 30° x 60° (Line Source) | 60° x +5°/-25° (Point Source) | Power handling nomina: l2 x 500 W | Power handling programme: 2 x 1000 W | Power handling peak: 2 x 2000 W | Max. SPL (1 m) | 141 dB SPL (Point Source) | 143 dB SPL (1 x Line Source (30°)) | 145 dB SPL (2 x Line Source (60°)) | 146 dB SPL (3 x Line Source (90°)) | 147 dB SPL (4 x Line Source (120°)) | Impedance nominal: 2 x 8 Ω | Loudspeakers per channel: 2 (recommended)/3 (maximum) | Components: 2 x 12“ LF, 6 x 5“ MF, 4 x 1“ HF | Connectors: 2 x speakON® 4-pol NLT4MP (1+/1- LF/HF, 2+/2- MF) | Enclosure: Frame-reinforced 15 mm multiplex enclosure with 30° angle for ideal cluster setups with highly resistant polyurea synthetic coating in black, convertible between line source and point source through rotation of integrated VariQ-unit, integrated flying track system, ergonomic handles on top and bottom for horizontal and vertical transport, sunk-in connector panel, 4 non-abrasive plastic sliding feet on bottom, ball-proof steel grille with black acoustic foam behind the grille. | Dimensions (W x H x D): 460 x 800 x 460 mm | Weight: 48 kg
