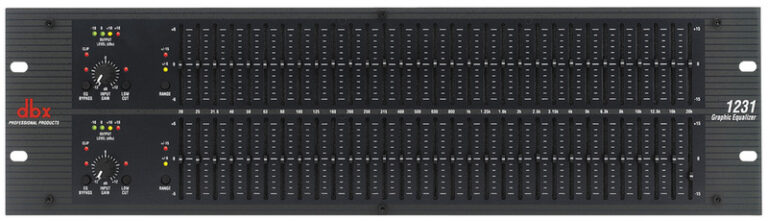

DBX 1231

Beschrijving

Input Connectors | 1/4″ TRS, female XLR (pin 2 hot), and barrier terminal strip | Input Type | Electronically balanced/unbalanced, RF filtered | Input Impedance | Balanced 40 kOhm, unbalanced 20 kOhm | Max Input | >+21dBu balanced or unbalanced | CMRR | >40dB, typically >55dB at 1kHz | Output Connectors | 1/4″ TRS, male XLR (pin 2 hot), and barrier terminal strip | Output Type | Impedance-balanced/unbalanced, RF filtered | Output Impedance | Balanced 200 ohm, unbalanced 100 ohm | Max Output | >+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm) | Bandwidth | 20Hz to 20kHz, +0.5/-1dB | Frequency Response | <10Hz to >50kHz, +0.5/-3dB; +/-15dB range; +/-6dB range | Dynamic Range | 109dB; 115dB | Signal to Noise Ratio | 90dB, 97dB | THD+Noise | <0.005% | Interchannel Crosstalk | <-80db, 20Hz to 20kHz | Bypass Switch | Bypasses the graphic equalizer section in the signal path | Low cut Switch | (recessed) Activates the 40Hz 18dB/octave Bessel high-pass filter | Range Switch | (recessed) Selects either +/- 6dB or +/- 15dB slider boost/cut range | I/O Meter | 4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and +18dBu | Indicators | EQ Bypass (Red); Clip (Red); Low Cut (Red); +/-6dB (Yellow); +/-15dB (Red) | Operating Voltage | 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz | Power Consumption | 24W | Power Connector | IEC receptacle | Dimensions | (13.4cm x 48.3cm x 20.1cm) | Unit Weight | 4.8kg | Shipping Weight | 5.2kg
