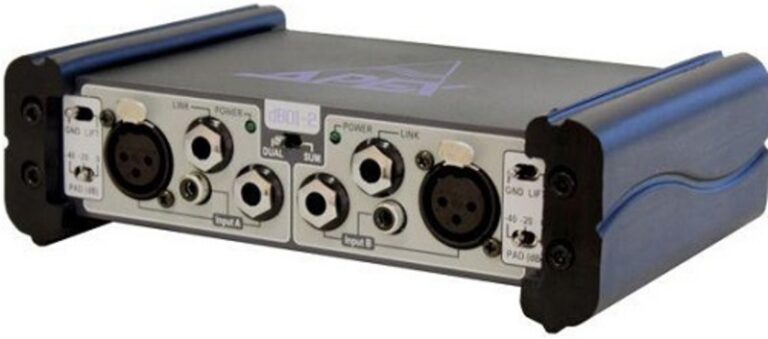

Apex dBDI-2

Beschrijving

Unbalanced input | Connectors: | 1/4” TRS jack (Tip = hot, Ring = Sleeve = ground) | 3-pin XLR (Pin 2 = hot, Pin 1 = Pin 2 = ground) | RCA (Phono) (Tip = hot, Sleeve = ground) | Parallel output 1/4” TRS | Attenuator: | 0 dB        | 20dB        | 40 dB | Impedance: | 1 M-ohm | >40k-ohm | >40 k-ohm | Max input level: | .+9 dBu   |+29 dBu    |+33 dBu | Transformer balanced output | Connector: | 3-pin XLR (Pin 1 = ground, Pin 2 = hot, Pin 3 = cold) | Impedance: | < 50-ohm | Max output level: | +9dBu into 600 ohm load | Audio performance | Frequency response: | 20 Hz - 20 kHz, +0/-0.5 dB into >1k5 load | Signal to noise ratio (S/N): | 110 dB, ref. 0 dBu, 22 kHz BW, unity gain, unweighted | Total Harmonic Distortion + Noise (THD+N): | less than 0,005%, 0 dBu, 30Hz- 20 kHz, unity gain, 22 kHz BW | Channel separation (Crosstalk): | -75 dB, 20 Hz – 20 kHz, 0 dBu | Phantom power requirements | Voltage: | +48 Vdc | Current drain: | less than 10 mA per channel | External AC adapter requirements | Voltage: | +9Vdc to +12 Vdc | Current drain: | less than 18 mA total | Weight and Dimensions | Netto weight: | 870 g | width: | 200 mm | depth: | 120 mm | height: | 60 mm | Shipping weight: | 1 kg
